1034 Idle Speed Increase Line High
1034 Idle Speed Increase Line High

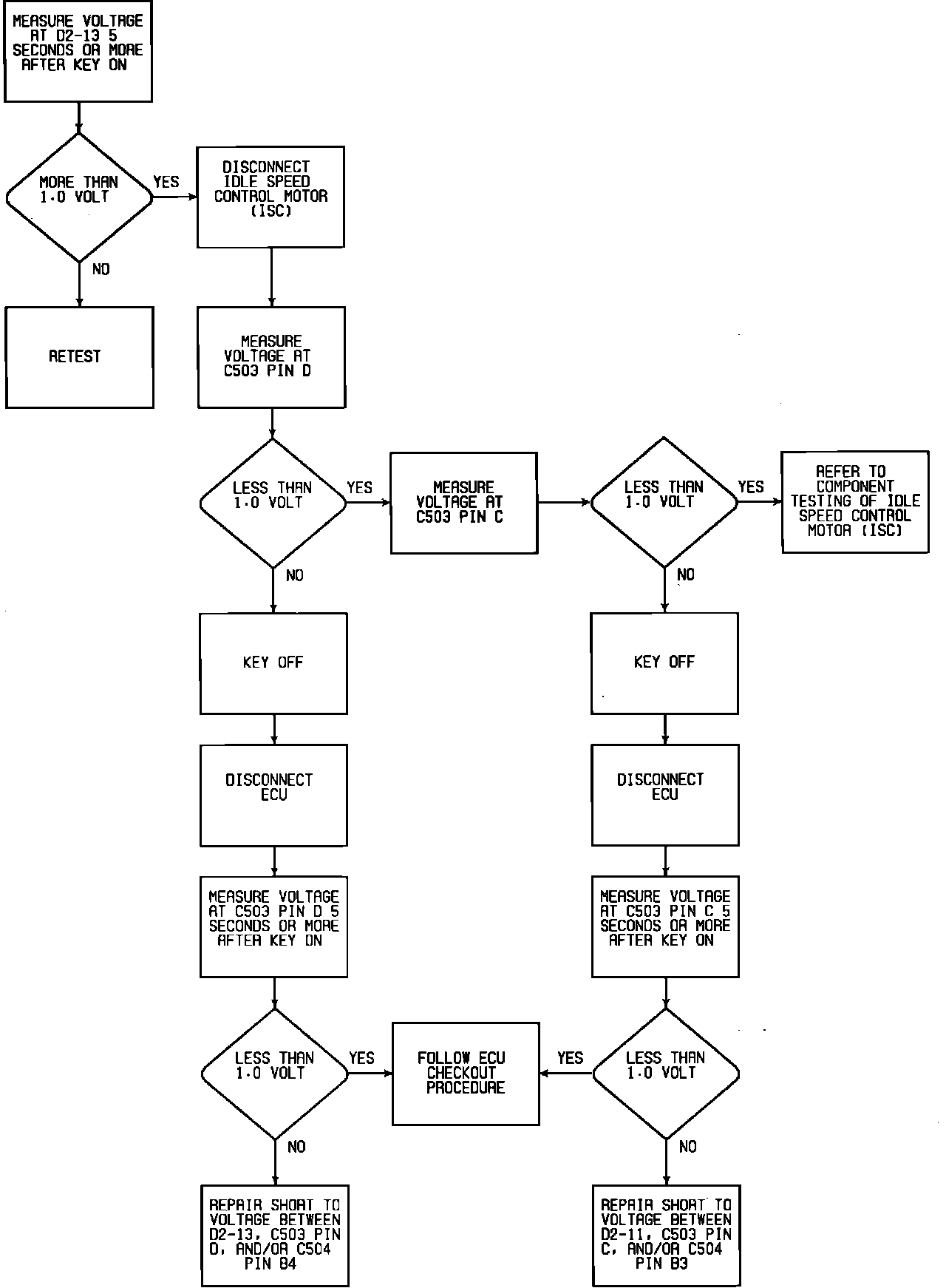

Code 1034:
Code 1034

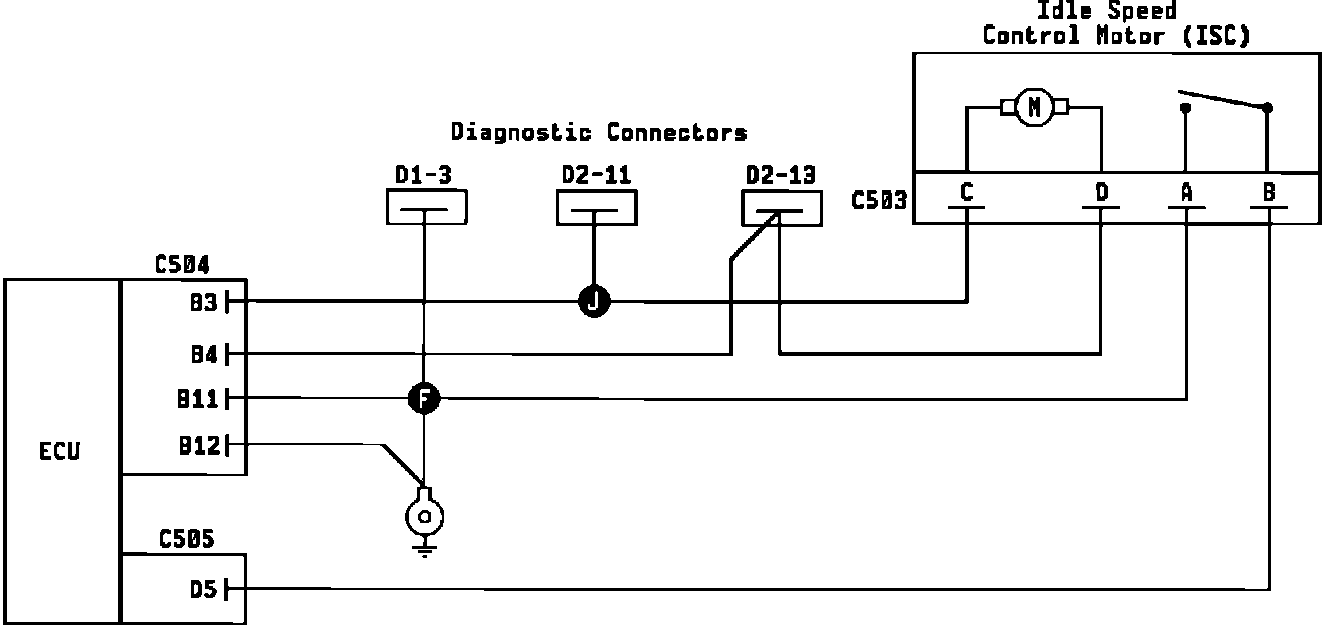

Wiring Diagram:
Code 1034 Wiring Diagram
