Home >> Eagle >> 1989 >> Premier L4-150 2.5L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> 4 Digit Codes >> 1031 ECU Sees Closed Throttle

1031 ECU Sees Closed Throttle

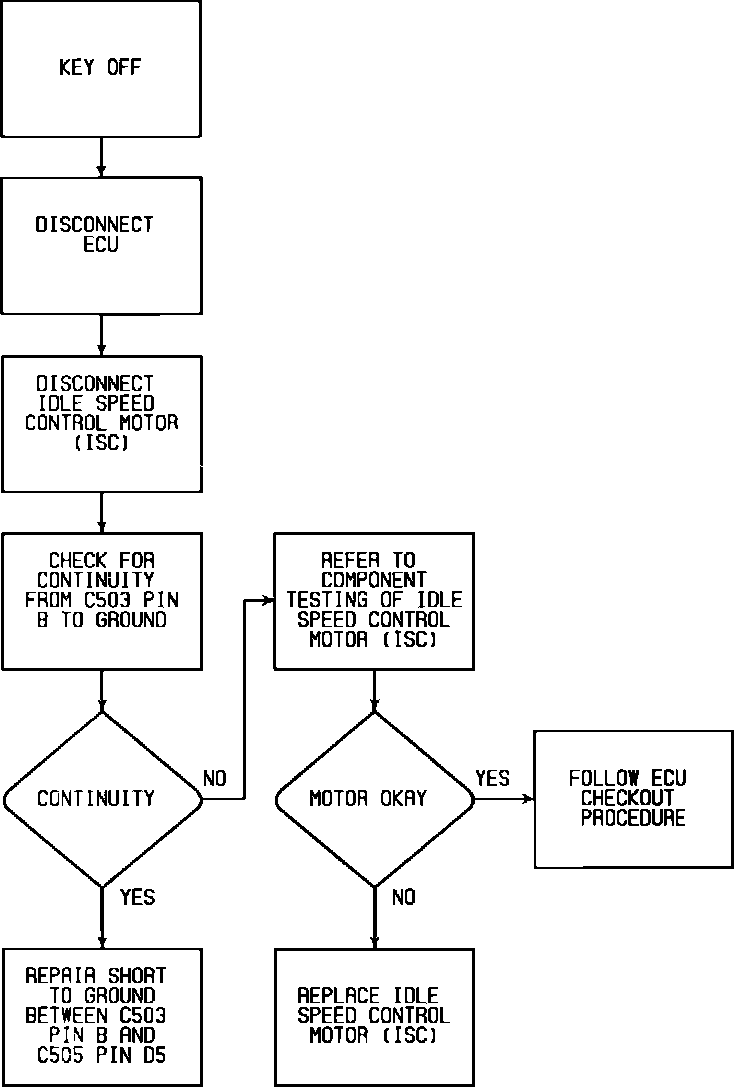

Code 1031:






Code 1031


Wiring Diagram:





Code 1031 Wiring Diagram
