Home >> Eagle >> 1989 >> Premier L4-150 2.5L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> 4 Digit Codes >> 1027 ECU Sees Wide Open Throttle

1027 ECU Sees Wide Open Throttle

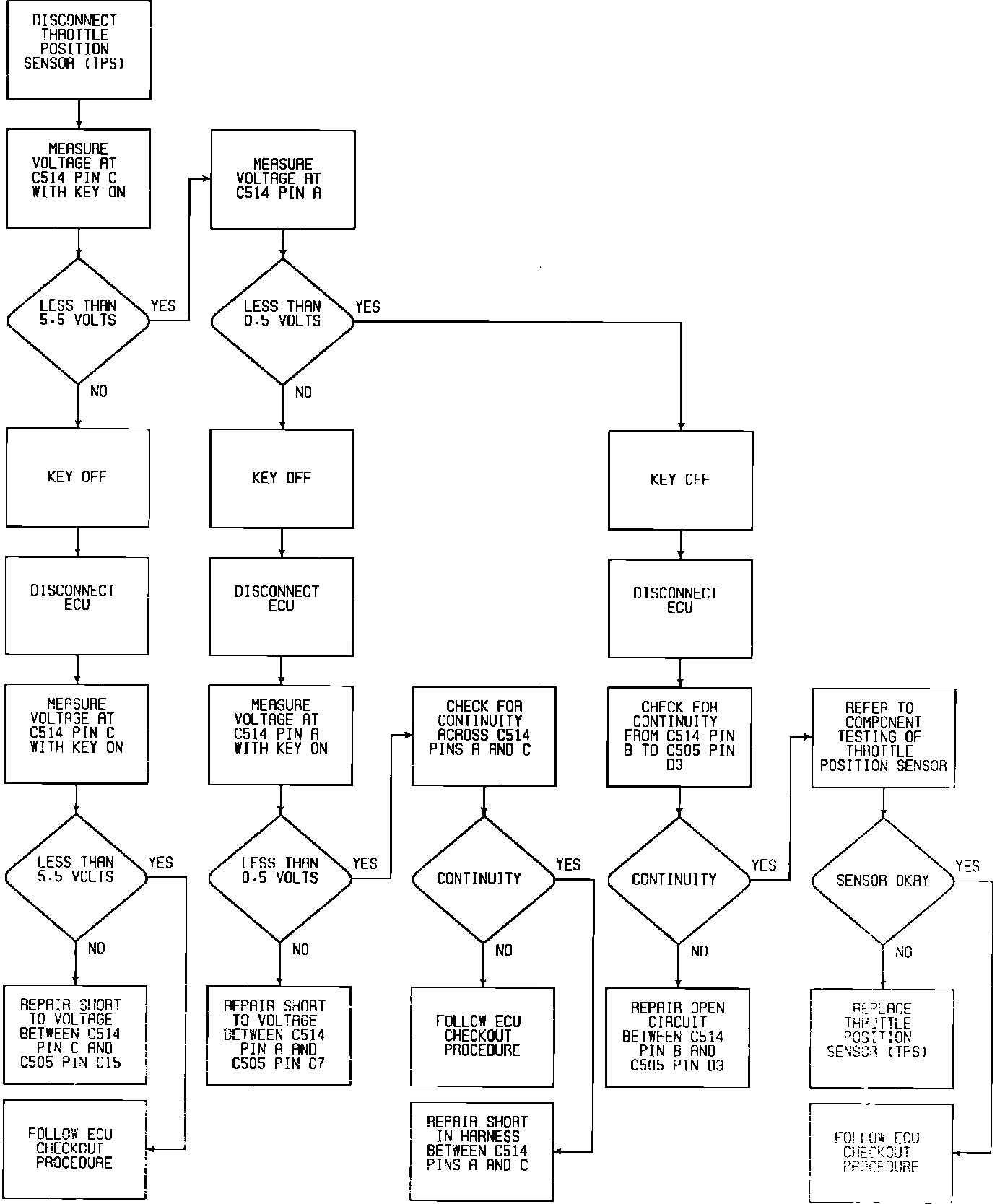

Code 1027:





Code 1027


Wiring Diagram:





Code 1027 Wiring Diagram
