1024 ECU Does Not See Start Signal

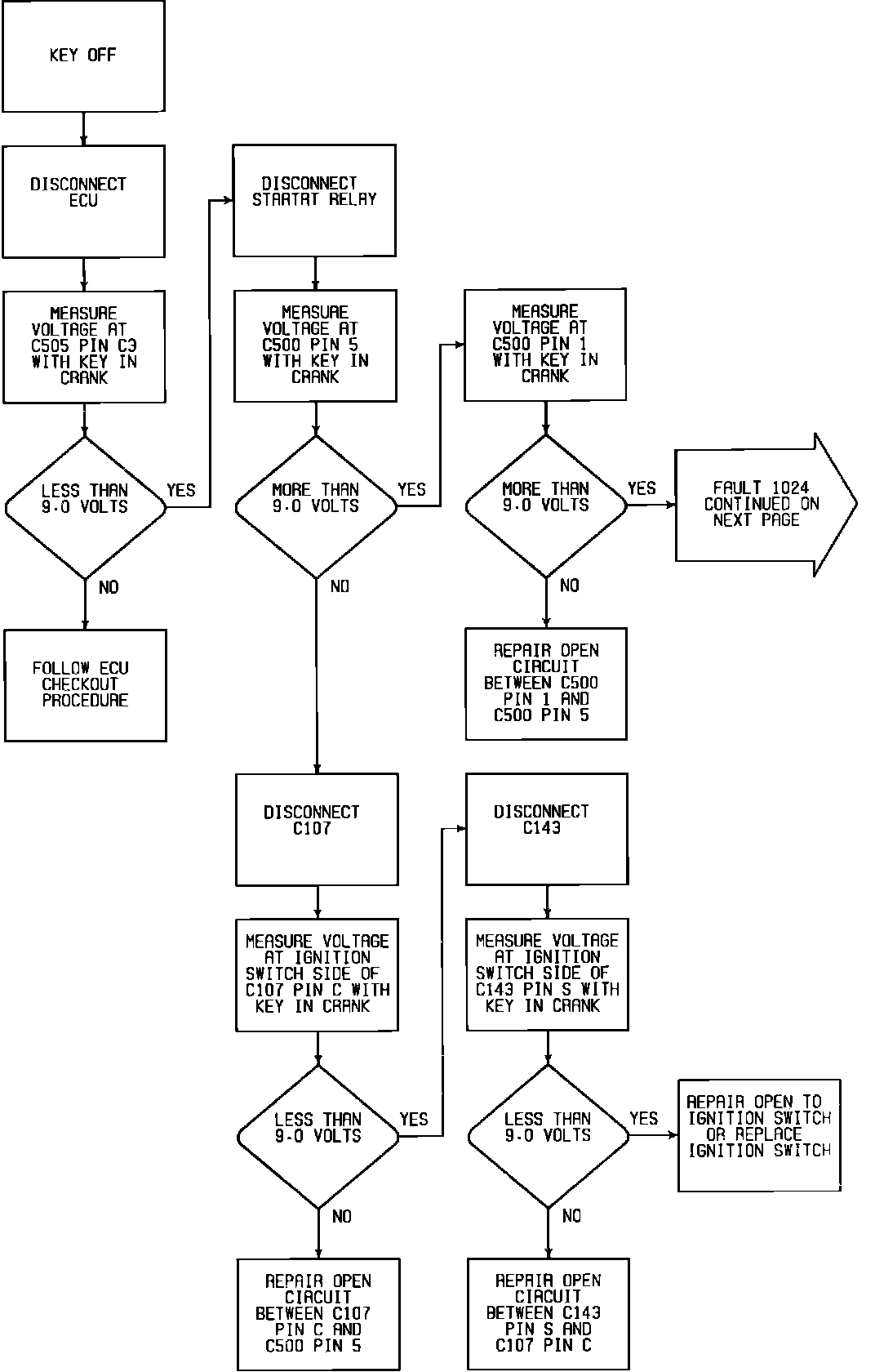

Code 1024 (Part 1 of 2):






Code 1024 (Part 1 of 2)

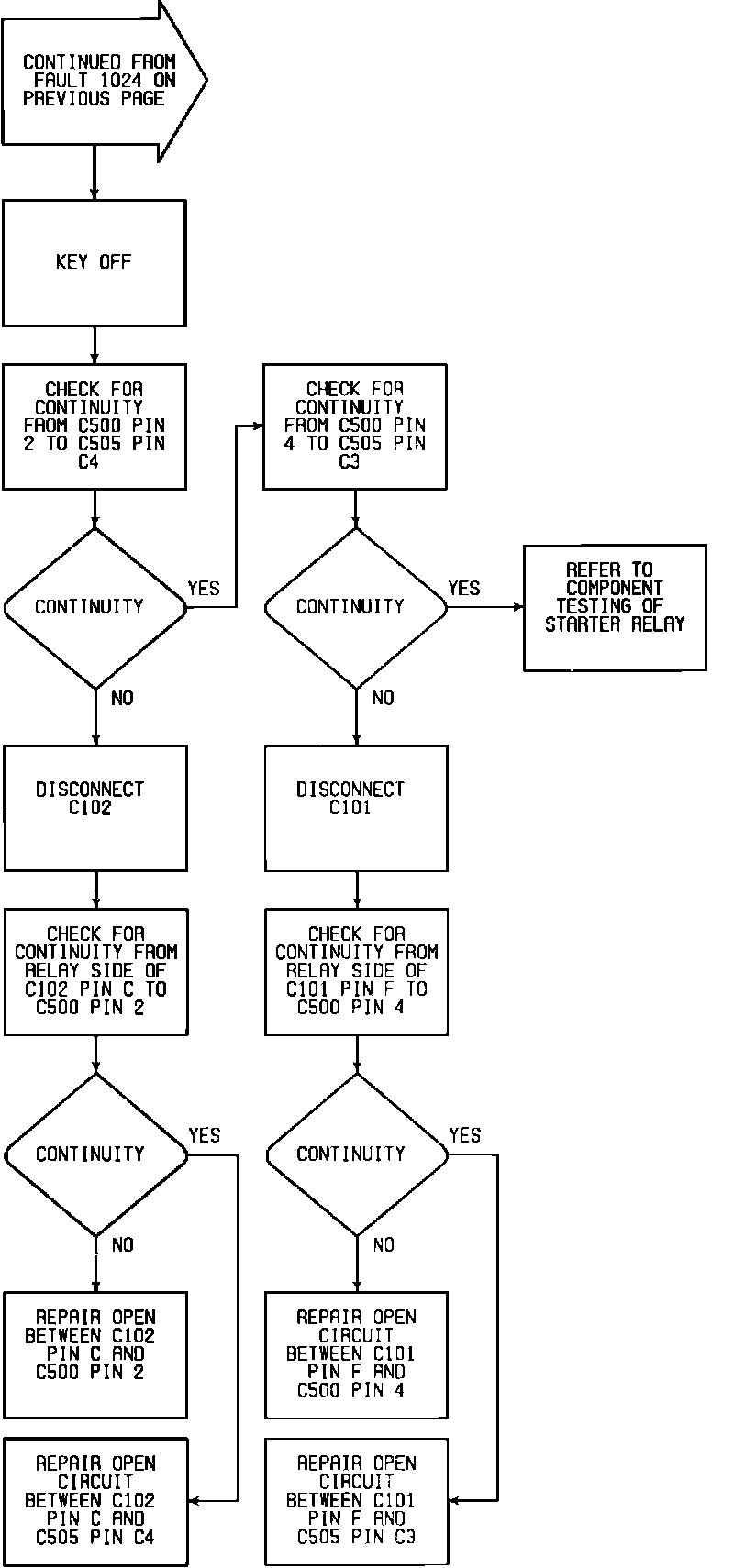

Code 1024 (Part 2 of 2):






Code 1024 (Part 2 of 2)


Wiring Diagram:






Code 1024 Wiring Diagram
