1015 Fuel Pump Line High

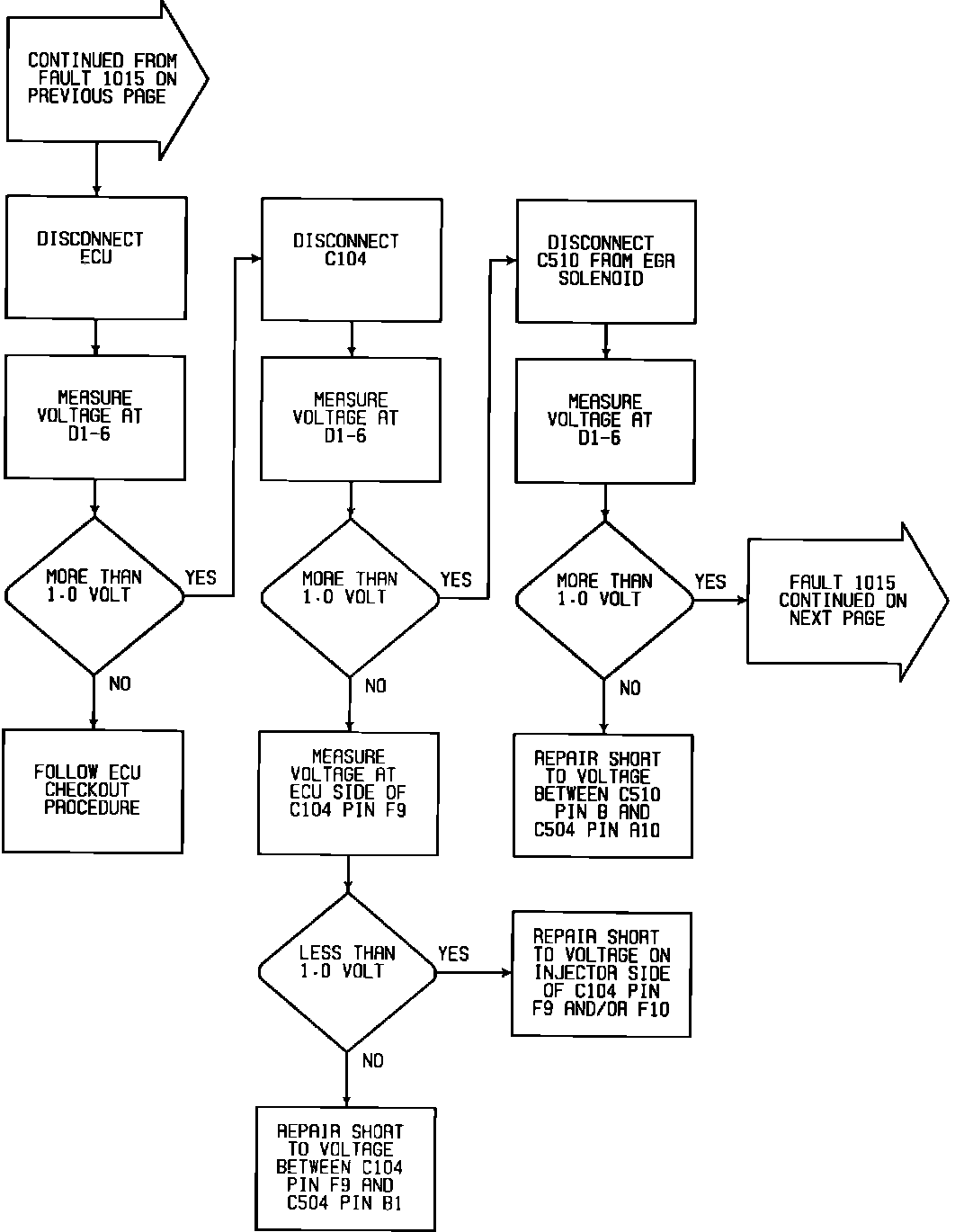

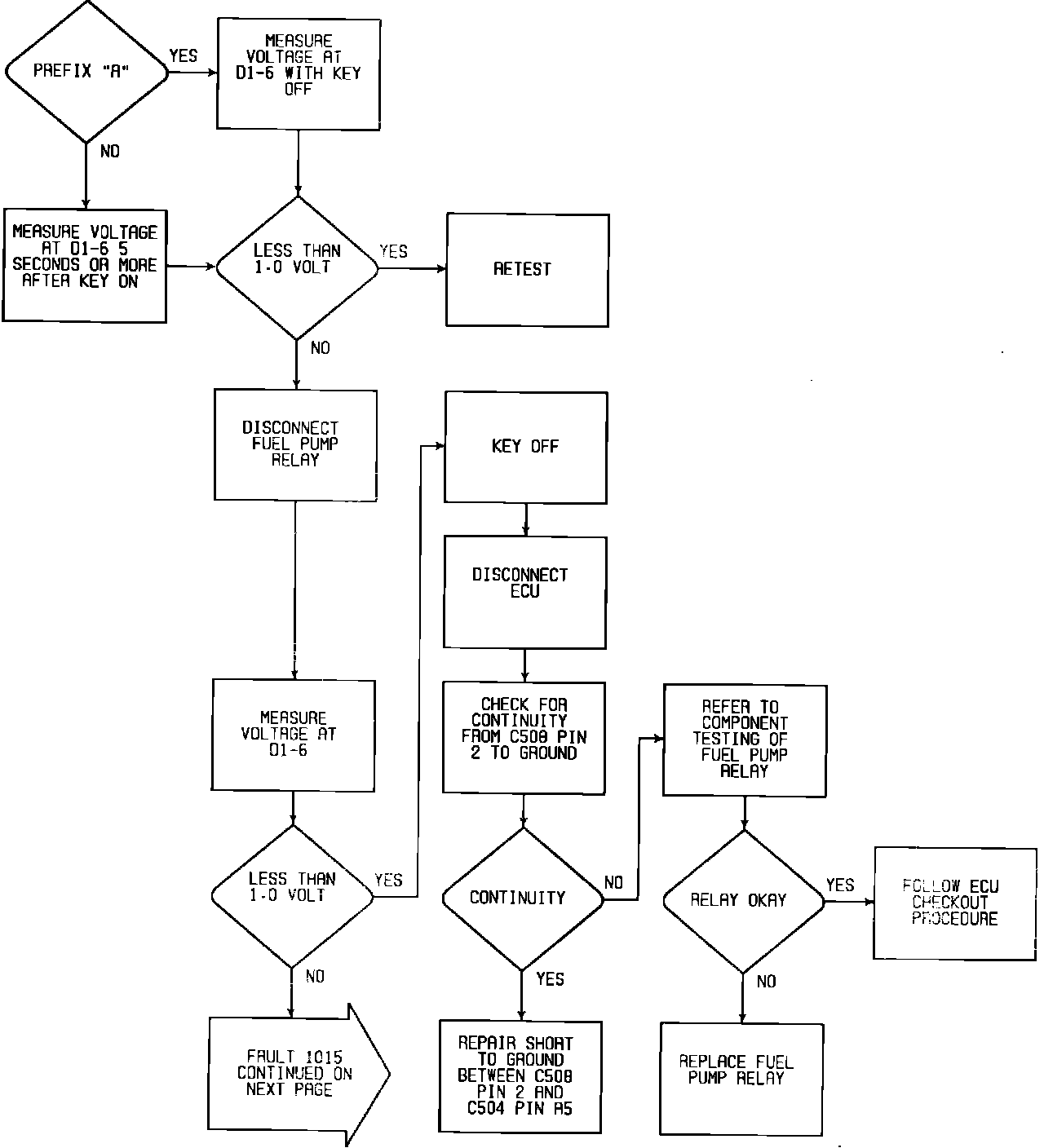

Code 1015 (Part 1 of 3):

Code 1015 (Part 1 of 3)

Code 1015 (Part 2 of 3):

Code 1015 (Part 2 of 3)

Code 1015 (Part 3 of 3):

Code 1015 (Part 3 of 3)

Wiring Diagram:

Code 1015 Wiring Diagram
