Home >> Eagle >> 1989 >> Premier L4-150 2.5L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> 4 Digit Codes >> 1013 MPA Line High

1013 MPA Line High

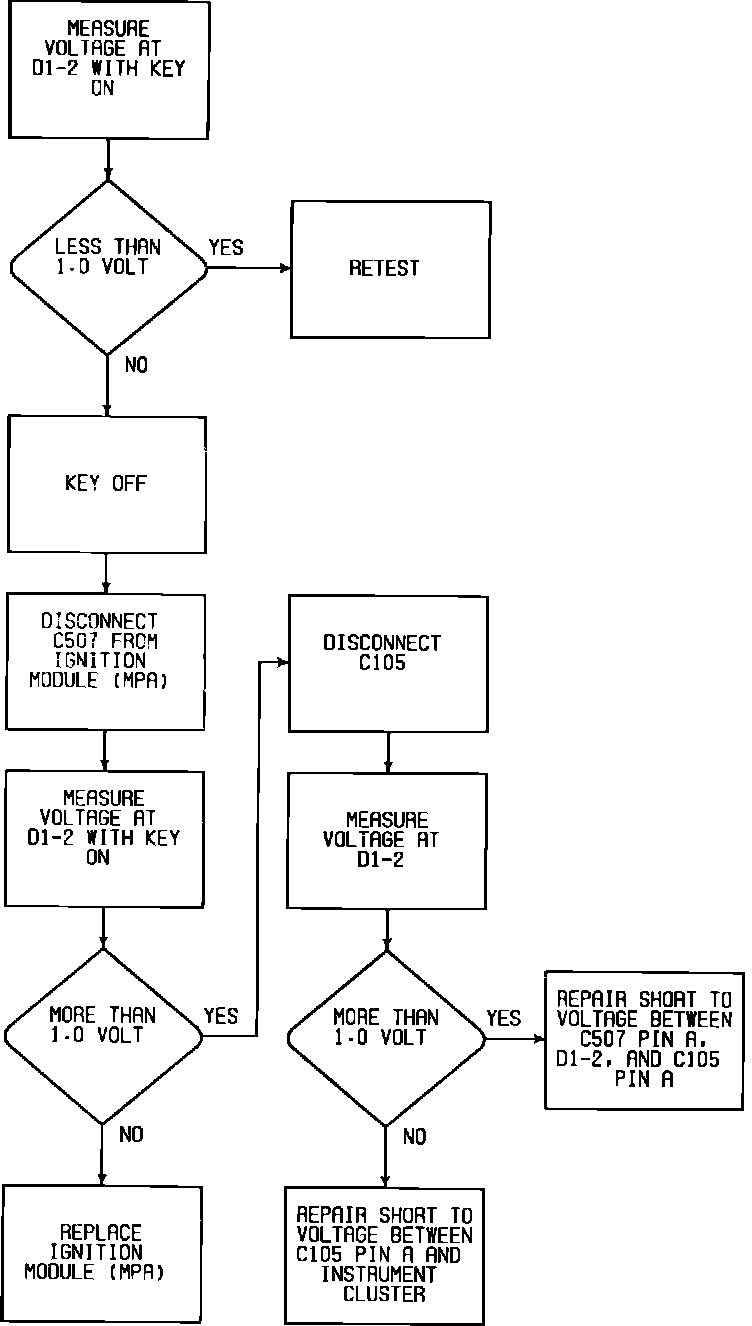

Code 1013:

Code 1013

Wiring Diagram:

Code 1013 Wiring Diagram
