Clutch: Service and Repair

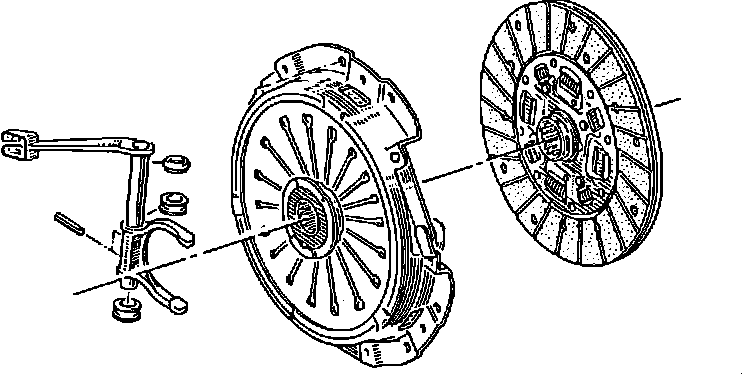

Fig. 1 Clutch, Pressure Plate & Release Fork:

1. Remove transaxle from vehicle.
2. Install a suitable flywheel locking tool, then remove pressure plate attaching bolts.
3. Remove pressure plate, release bearing assembly and clutch disc.
4. Reverse procedure to install. When installing clutch disc, long side of hub should face pressure plate. Torque pressure plate attaching bolts to 18 ft. lbs.
