Power Steering Pump: Description and Operation

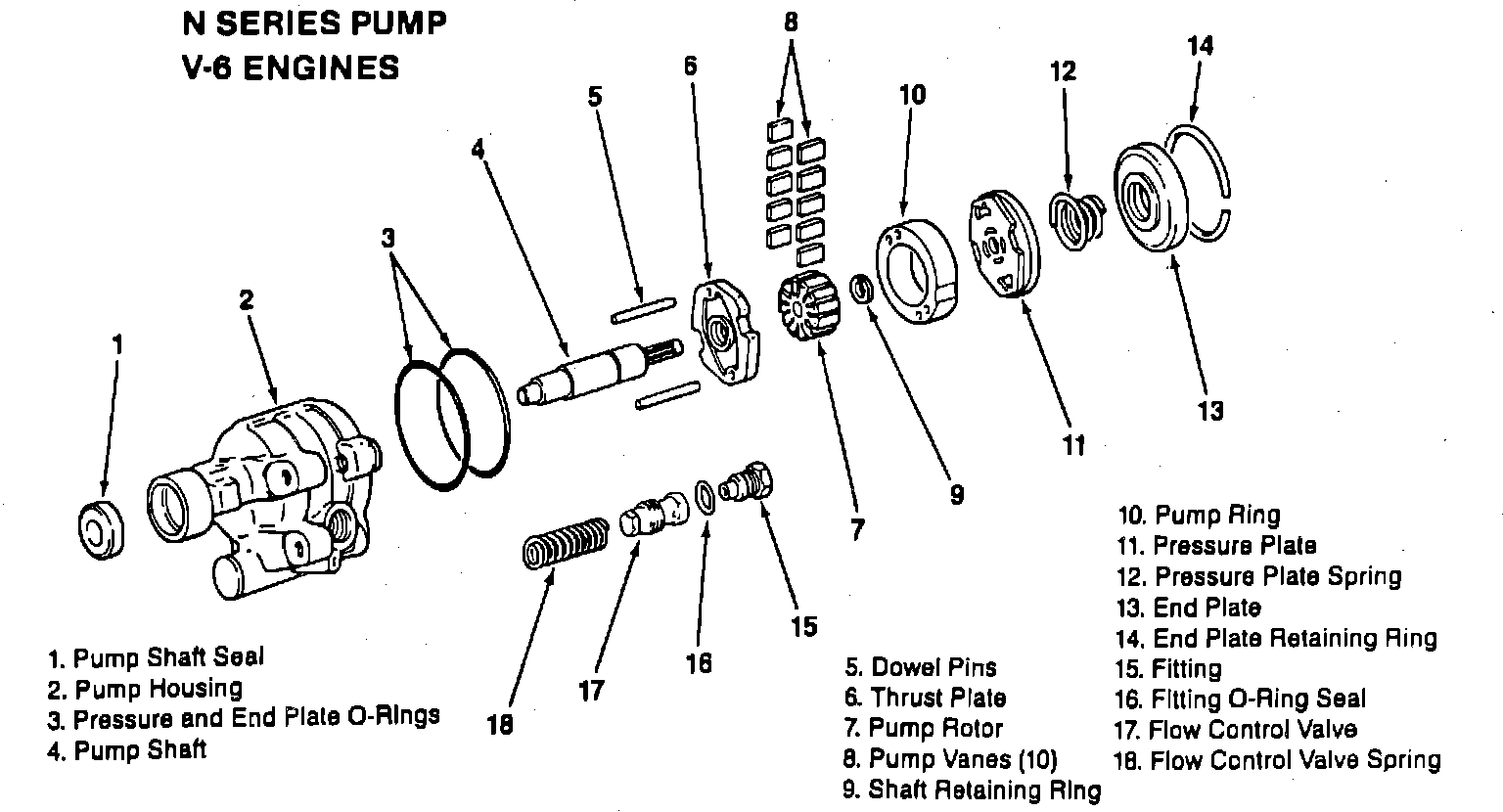

Fig. 1 Type 4--N Series Pump Exploded View:

The N series, pump which is used on the Eagle Medallion models and Eagle Premier and Dodge Monaco equipped with 3.0L/V6-180 engines is a vane type pump, and utilizes a remote fluid reservoir located near the front of the left cylinder head.
