Eagle
>>
1989
>>
Medallion L4-2165cc 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G110 & G111
G110 & G111

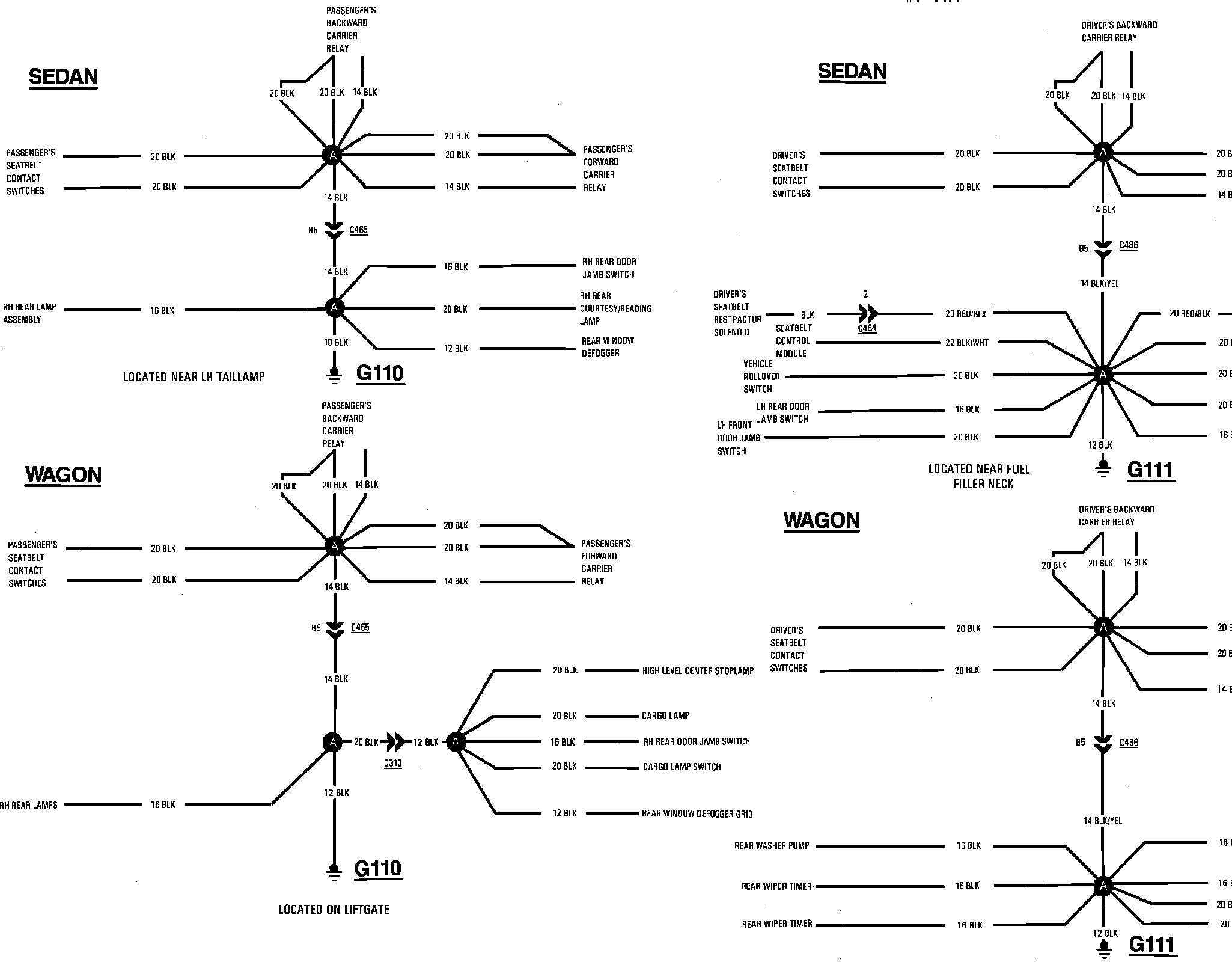

���=Ground Distribuition - G110 & G111:
