Heater A/C Control Panel Removal and Installation: Overview

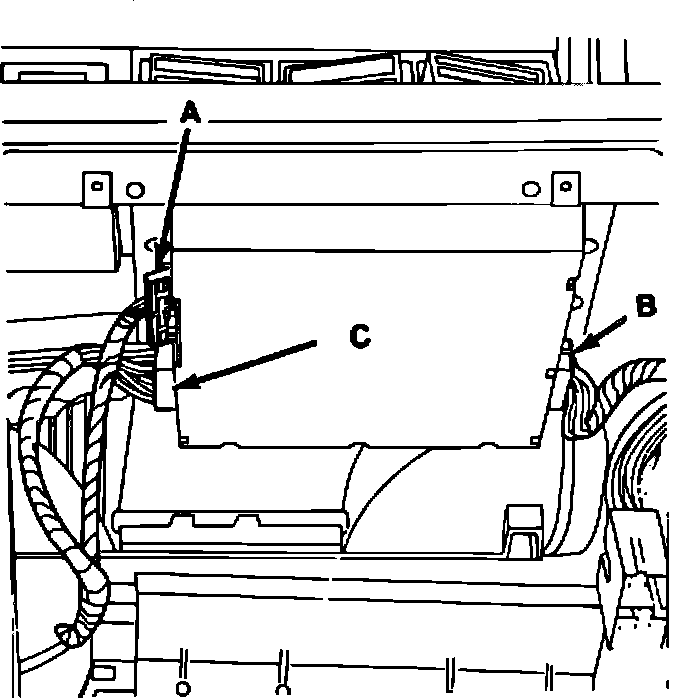

FIGURE 6:

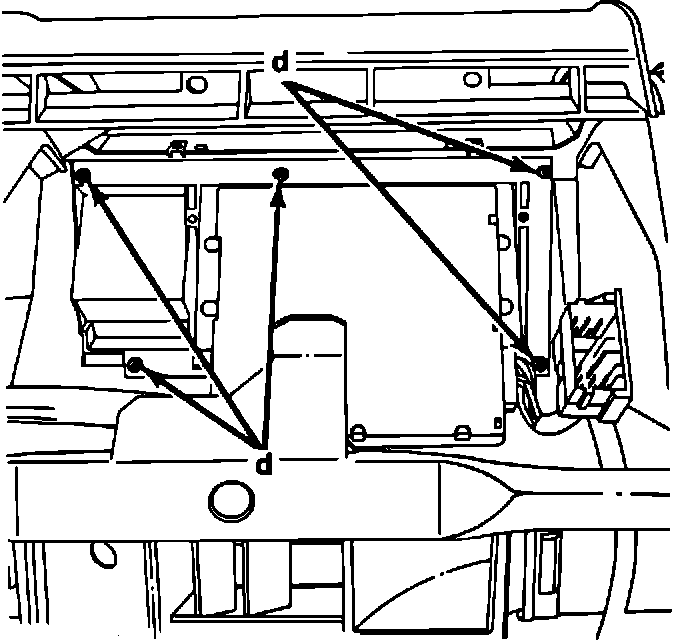

FIGURE 7:

1. Remove the radio (see instrument panel section).

2. Disconnect connectors (A), (B) and (C) from the heater A/C control panel (Figure 6).
3. Remove the 5 screws (d) (Figure 7) which fasten the heater A/C control panel to the instrument panel.
4. Reach under the instrument panel and remove the heater A/C control panel.

5. To install the heater A/C control panel, reverse the removal procedure.

6. Carefully reconnect connectors (A), (B) and (C) (Figure 6).

7. Install the radio.
