Oil Pump Drive Gear Replacement

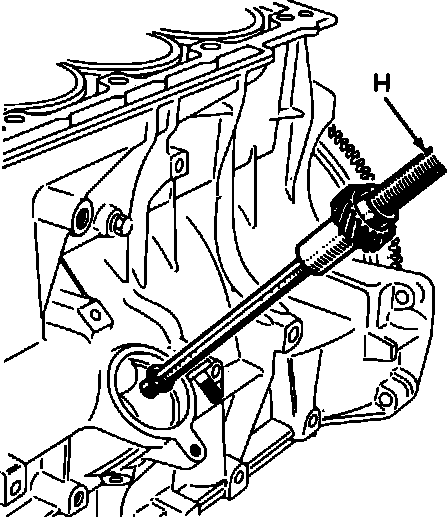

Fig. 18 Oil Pump Drive Gear & Shaft:

1. Remove oil pump drive gear cover plate.
2. Using a suitable threaded rod, remove oil pump drive gear and shaft.
3. Reverse procedure to install. Ensure oil pump shaft properly engages oil pump and that drive gear is properly meshed.
