Home >> Eagle >> 1989 >> Medallion L4-2165cc 2.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Courtesy Lamp >> Interior Lamps (Sedan Models)

Interior Lamps (Sedan Models)

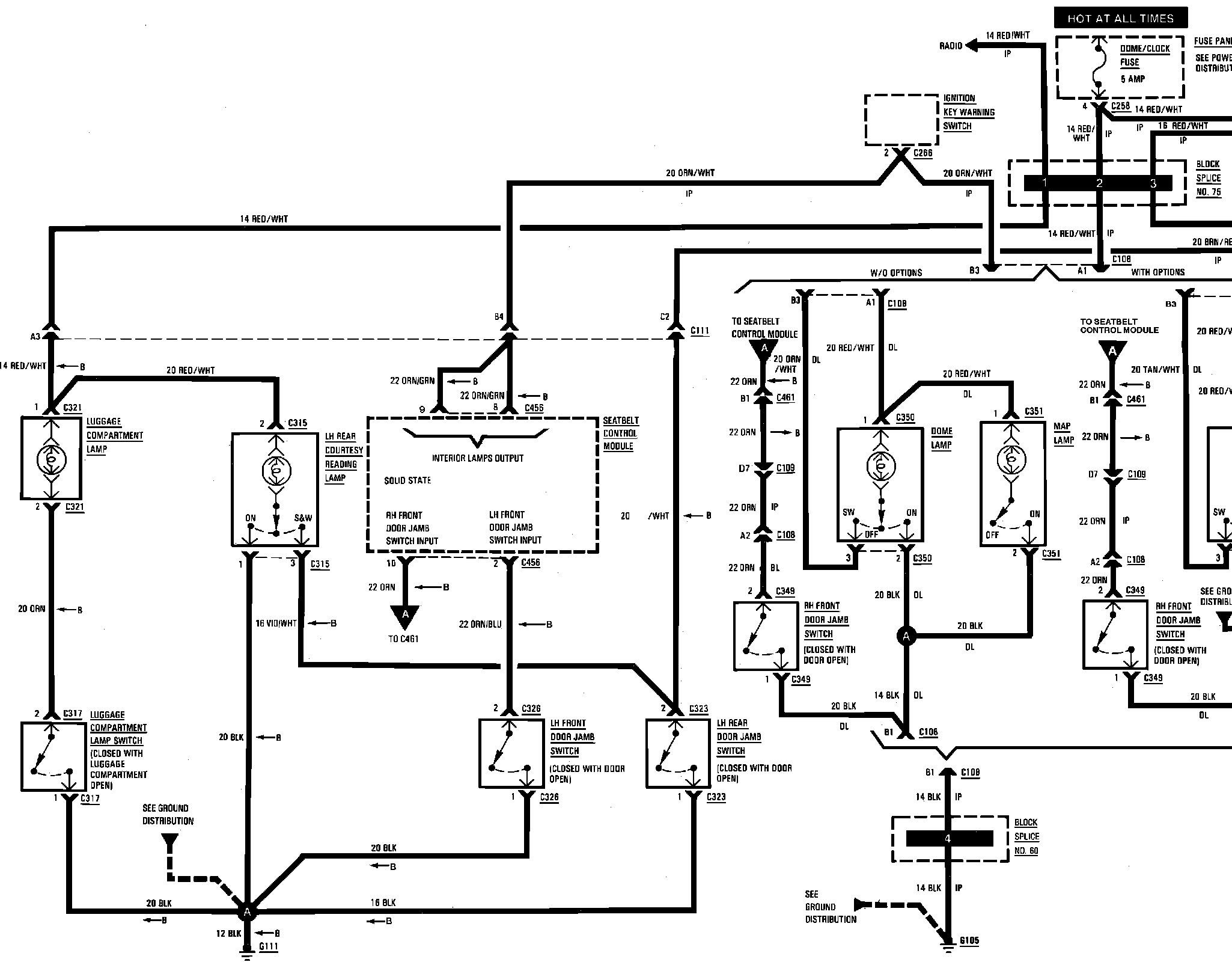

j�IInterior Lamps Wiring Circuit:
