Eagle
>>
1989
>>
Medallion L4-2165cc 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Lamp
>>
Sedan
Sedan

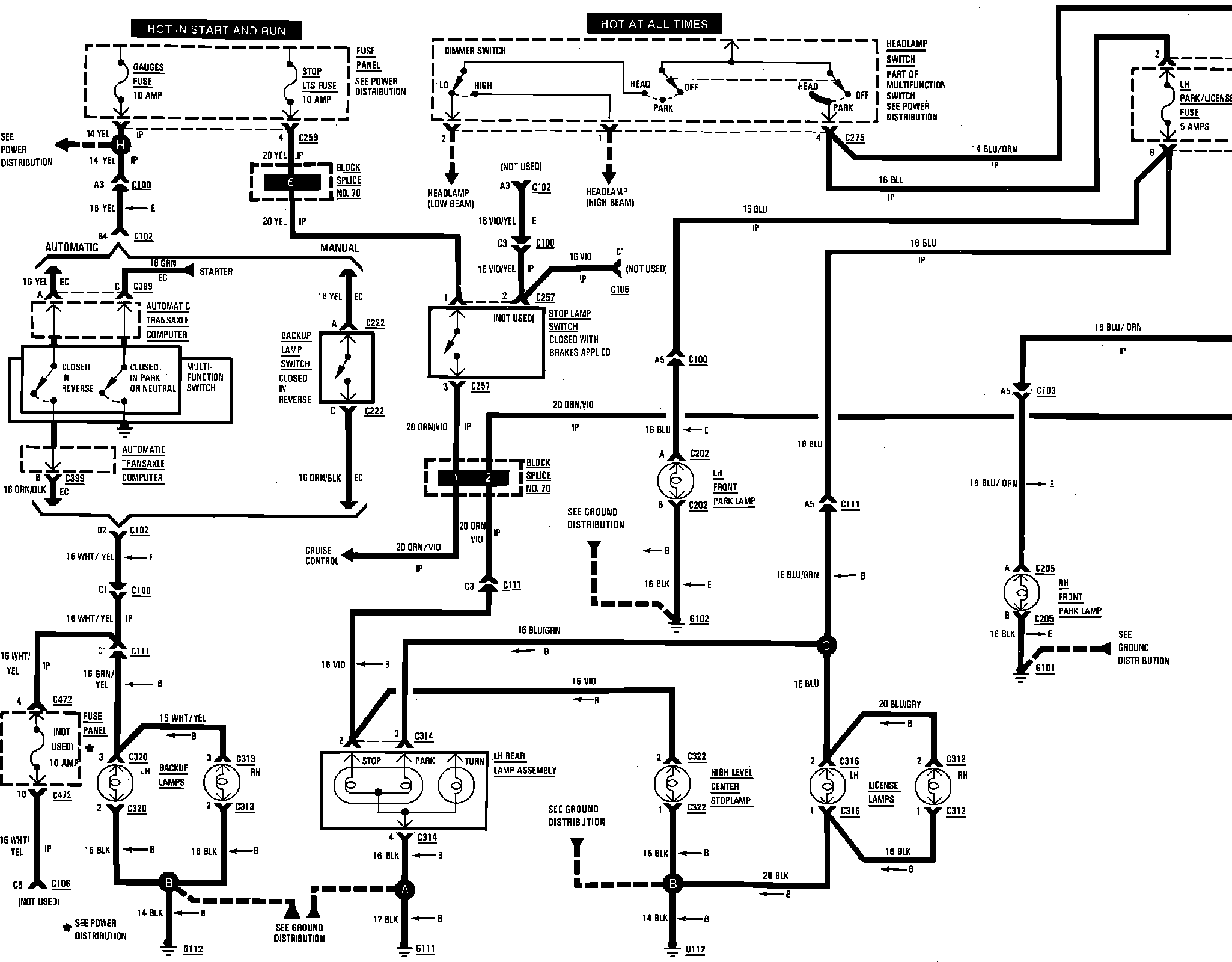

Q�HBack Up, License, Park & Stop Lamps Wiring Circuit:
