Servo Control (Regulator)

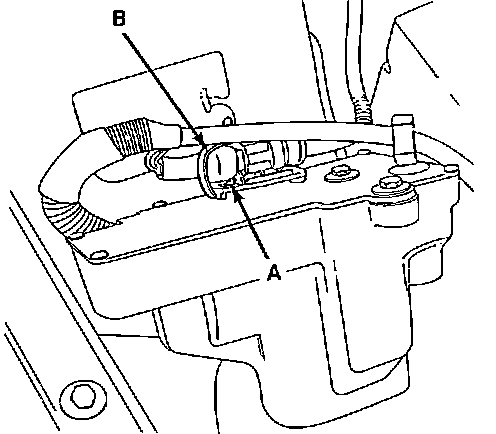

Fig. 4 Wiper/Washer Electrical Connector Location W/Hella System:

1. Press retaining clip (A) holding wiper/washer connector, then slide electrical connector out of bracket.
2. Position tie strap (B) ensuring wiper/washer connector will separate. Do not cut tie strap.

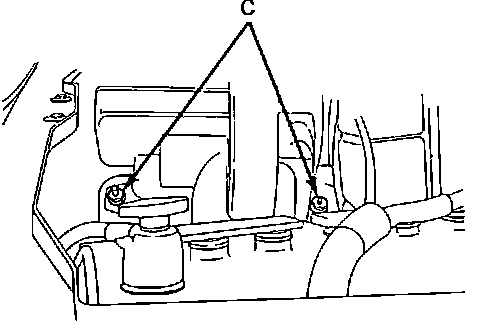

Fig. 5 Regulator Housing Attaching Nut Location W/Hella System:

3. Remove two retaining nuts (C) holding regulator housing to inner fender.

Fig. 6 Torx Head Screws Location W/Hella System:

4. Disconnect clip (D) holding vacuum line to housing.
5. Remove Torx head screws (E), then slide regulator assembly from housing.

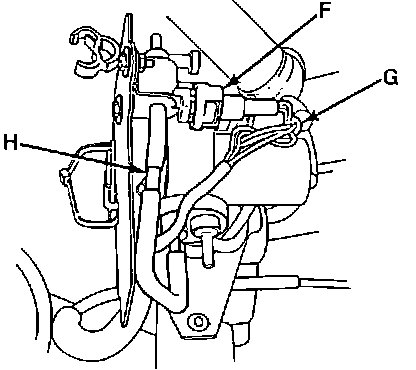

Fig. 7 Regulator Assembly Location W/Hella System:

6. Disconnect safety solenoid electrical connector (F), then the vacuum control.
7. Disconnect vacuum line (H), then remove regulator.
8. Reverse procedure to install.
