Safety Solenoid

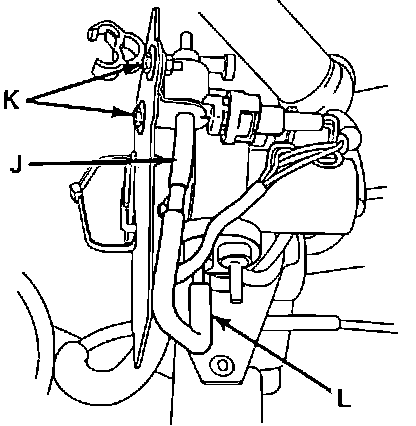

Fig. 8 Vacuum Line Location W/Hella System:

1. Remove regulator as previously described.
2. Disconnect vacuum line (J).
3. Remove two retaining bolts (K), then the solenoid.
4. Reverse procedure to install.
