Sliding Panel and Deflector Removal

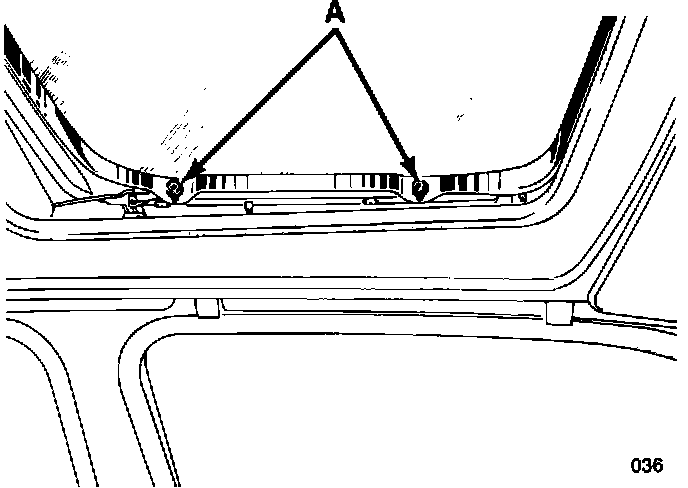

Figure 2:

1. Remove the four retaining screws (A) (Fig. 2) which are also used for vertical flush adjustment.

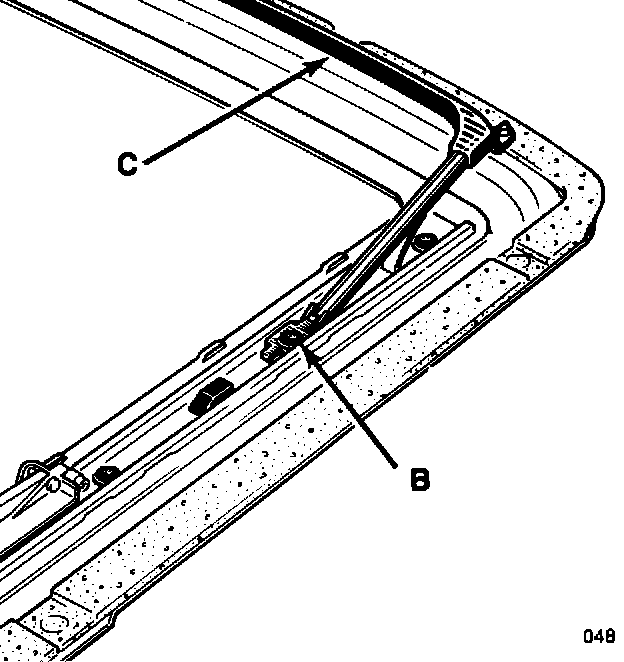

Figure 3:

2. To access the air deflector, the sun roof glass must be fully open. Remove (2) retaining screws (B) (Figure 3) and then remove the deflector (C).
