Fuel Pressure Regulator: Description and Operation

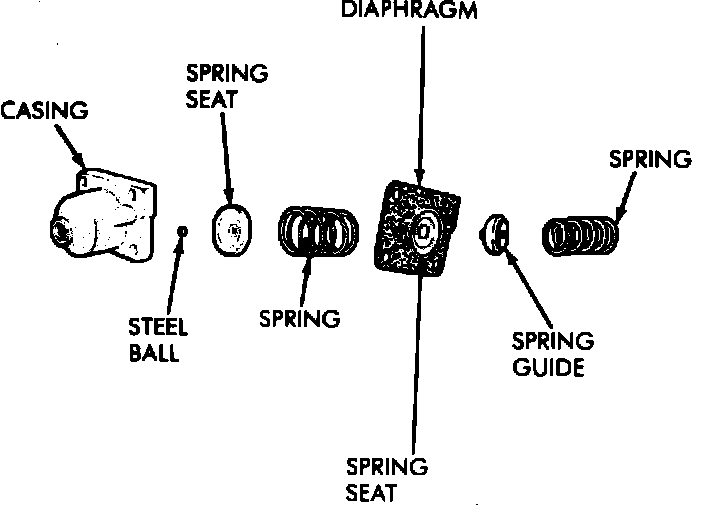

Fuel Pressure Regulator Components:

The fuel pressure regulator is an overflow type attached to the throttle body. The regulator is adjustable and controls the amount of fuel system pressure available to the fuel injector. Fuel pump output pressure is above that needed to operate the fuel system, and excess fuel is returned to the fuel tank through the regulator via the fuel return line. The regulator consists of a spring chamber, a calibrated spring, a diaphragm, and an adjusting screw. An aluminum plug seals the adjusting screw hole. When fuel under pressure enters the top of the regulator, the relief valve and spring are forced down, opening a passage to the fuel return line. A pivot on top of the diaphragm keeps the diaphragm from tipping. The amount of pressure required to force the regulator spring down determines the fuel system operating pressure. The adjustment screw allows that pressure to be set. Turning the screw in will increase the fuel pressure, and turning it out will decrease the fuel pressure. A small vent passage in the throttle body, vents the spring chamber to atmosphere, and the injector tip is also vented to atmosphere. Due to this venting process fuel system pressure bleeds rapidly to zero when the engine is not running.
