Eagle
>>
1988
>>
Premier L4-150 2.5L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Trunk Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

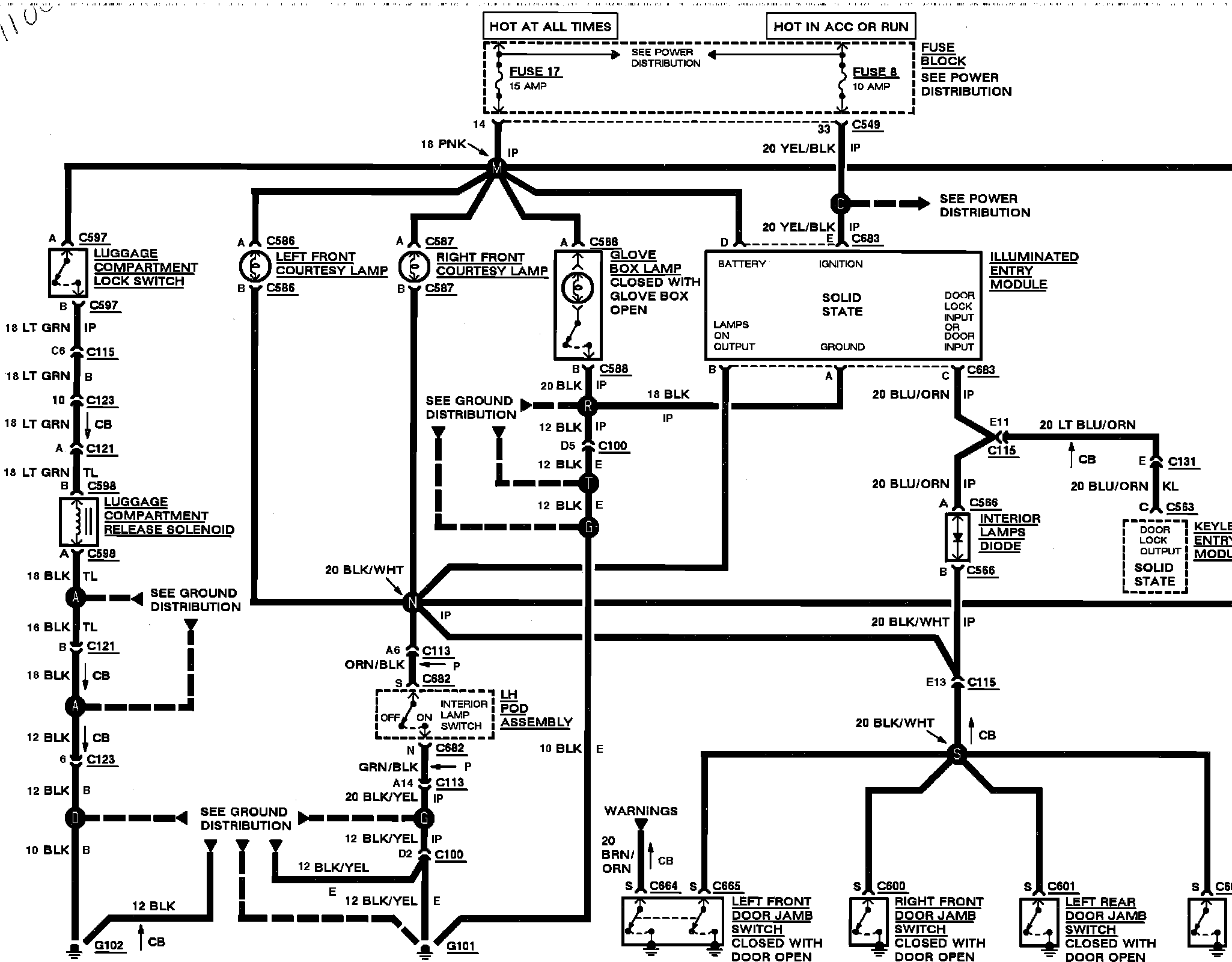

��J� JInterior & Luggage Compartment Lamps Wiring Circuit:
