Eagle
>>
1988
>>
Premier L4-150 2.5L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

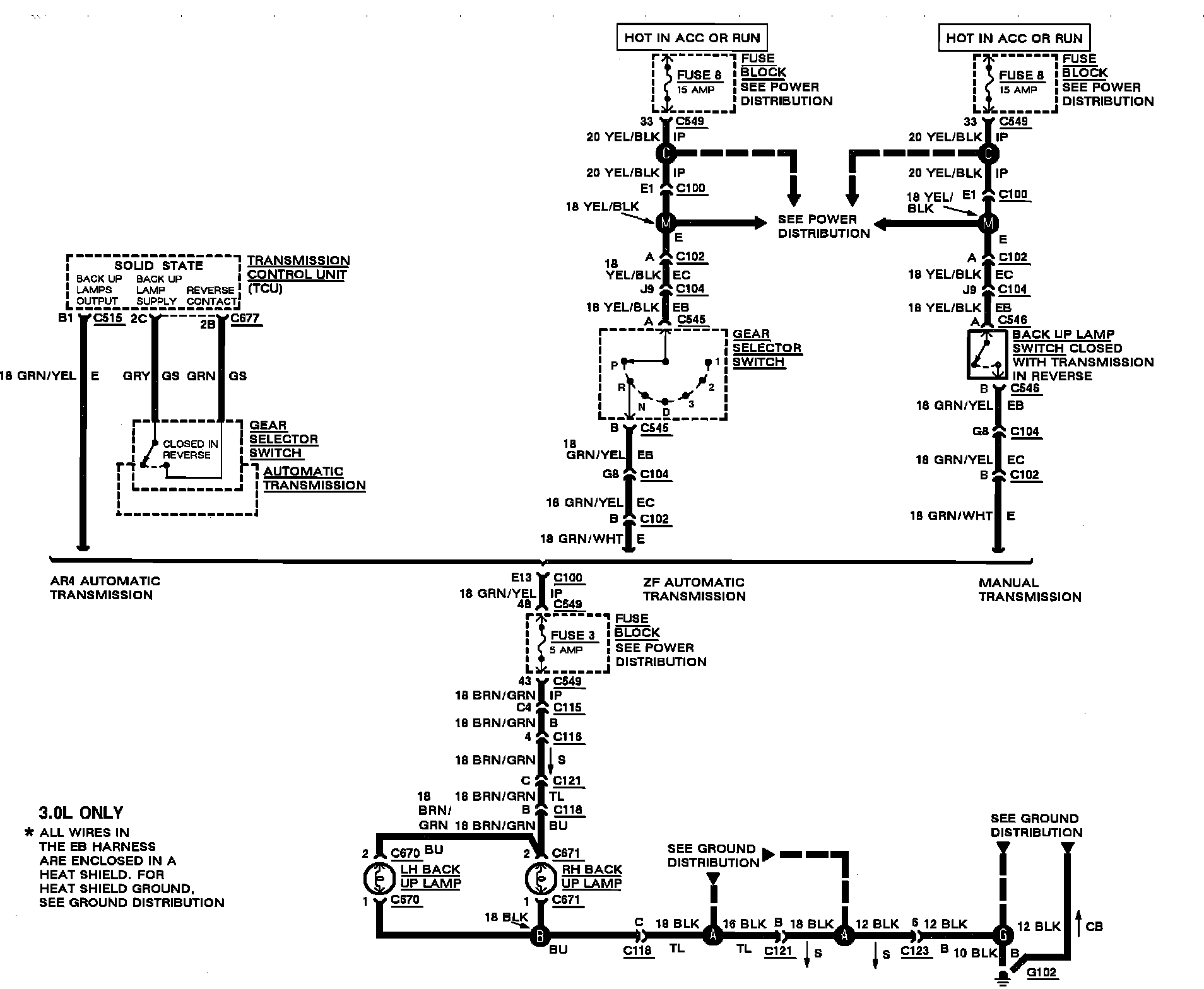

Back-Up Lamps Wiring Circuit:
