Home >> Eagle >> 1988 >> Premier L4-150 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G100 & G101 >> Part 1 of 2

Part 1 of 2

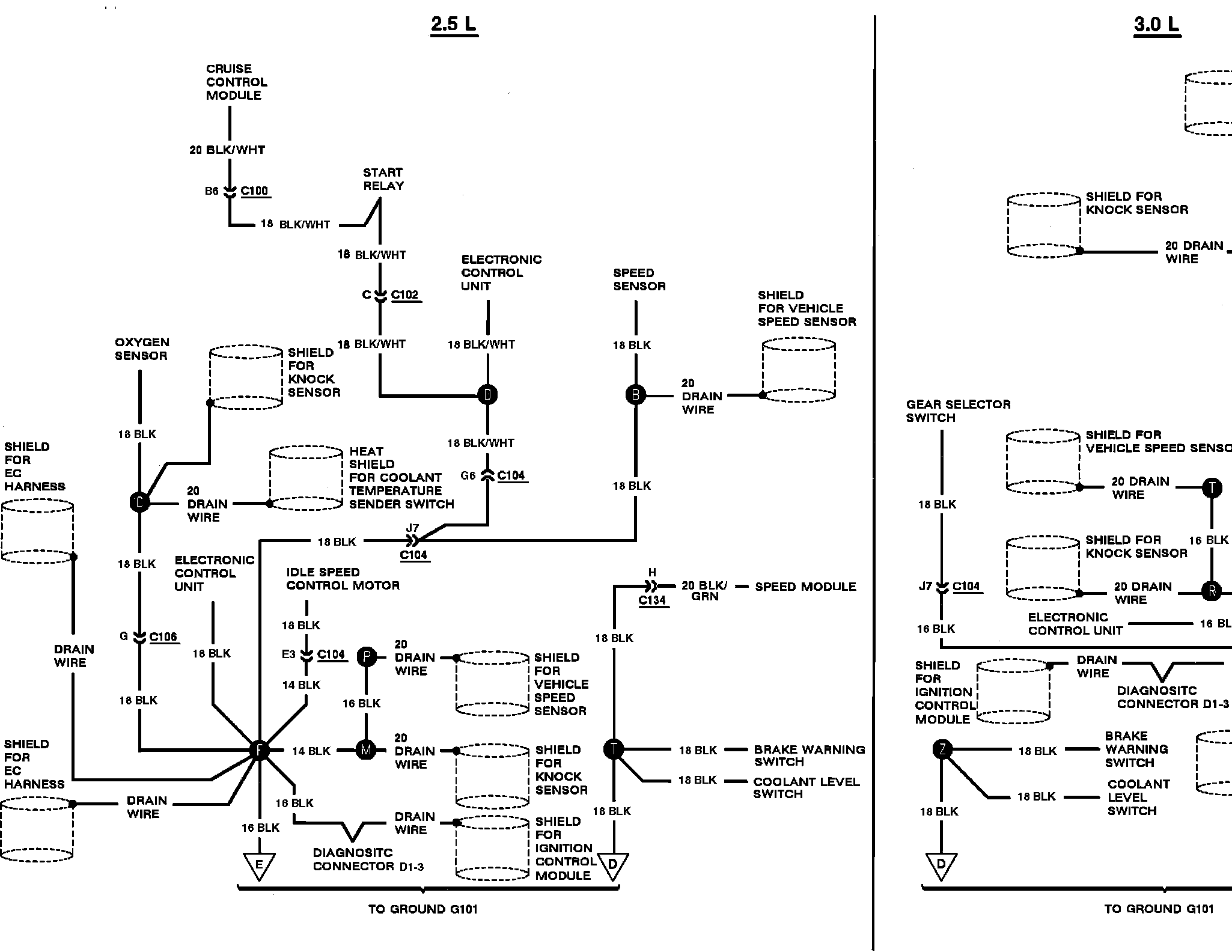

�.�=Ground Distribution. G100 & G101:
