Without Automatic Temperature Control

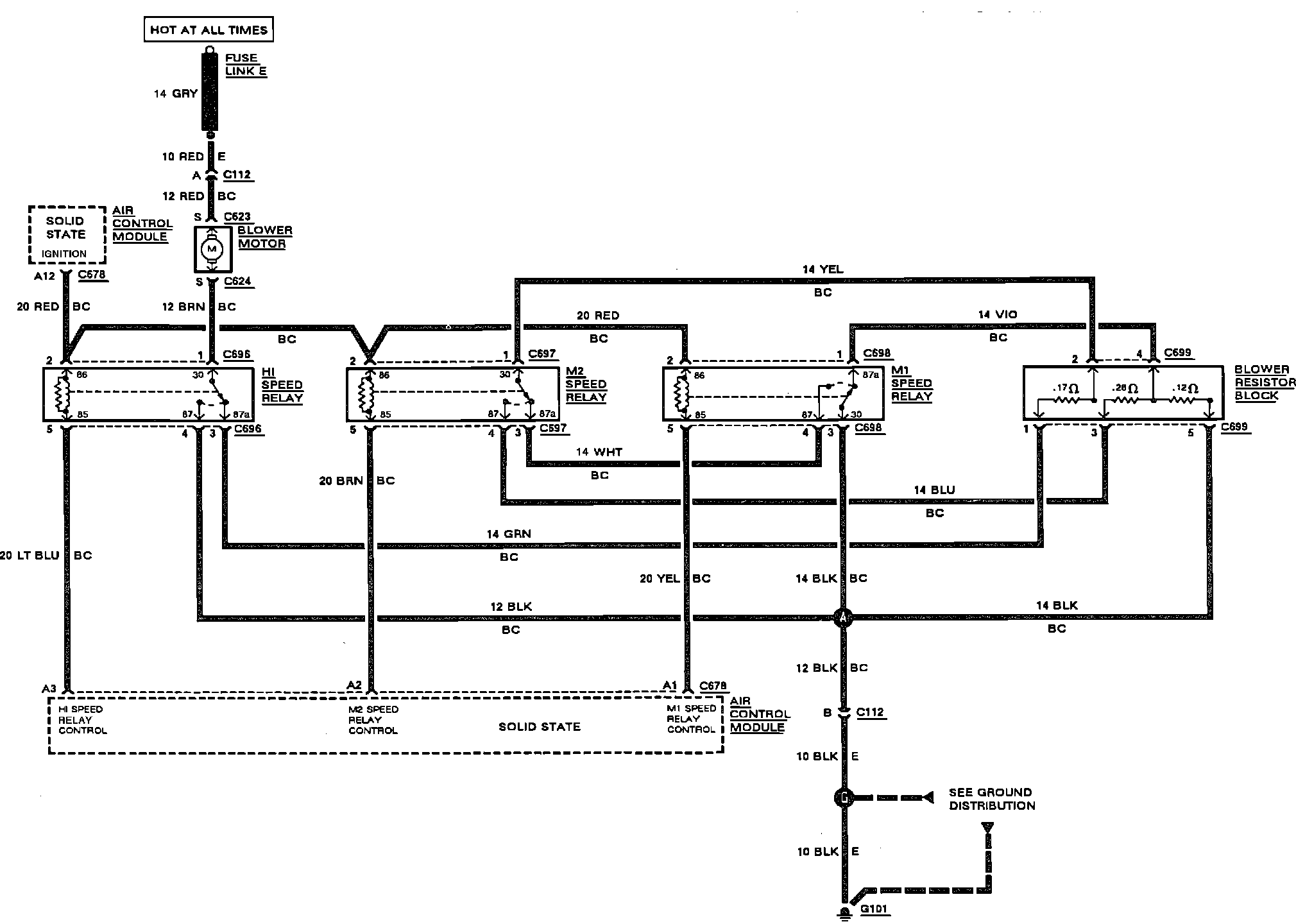

Heater System Wiring Circuit. Engine Compartment:

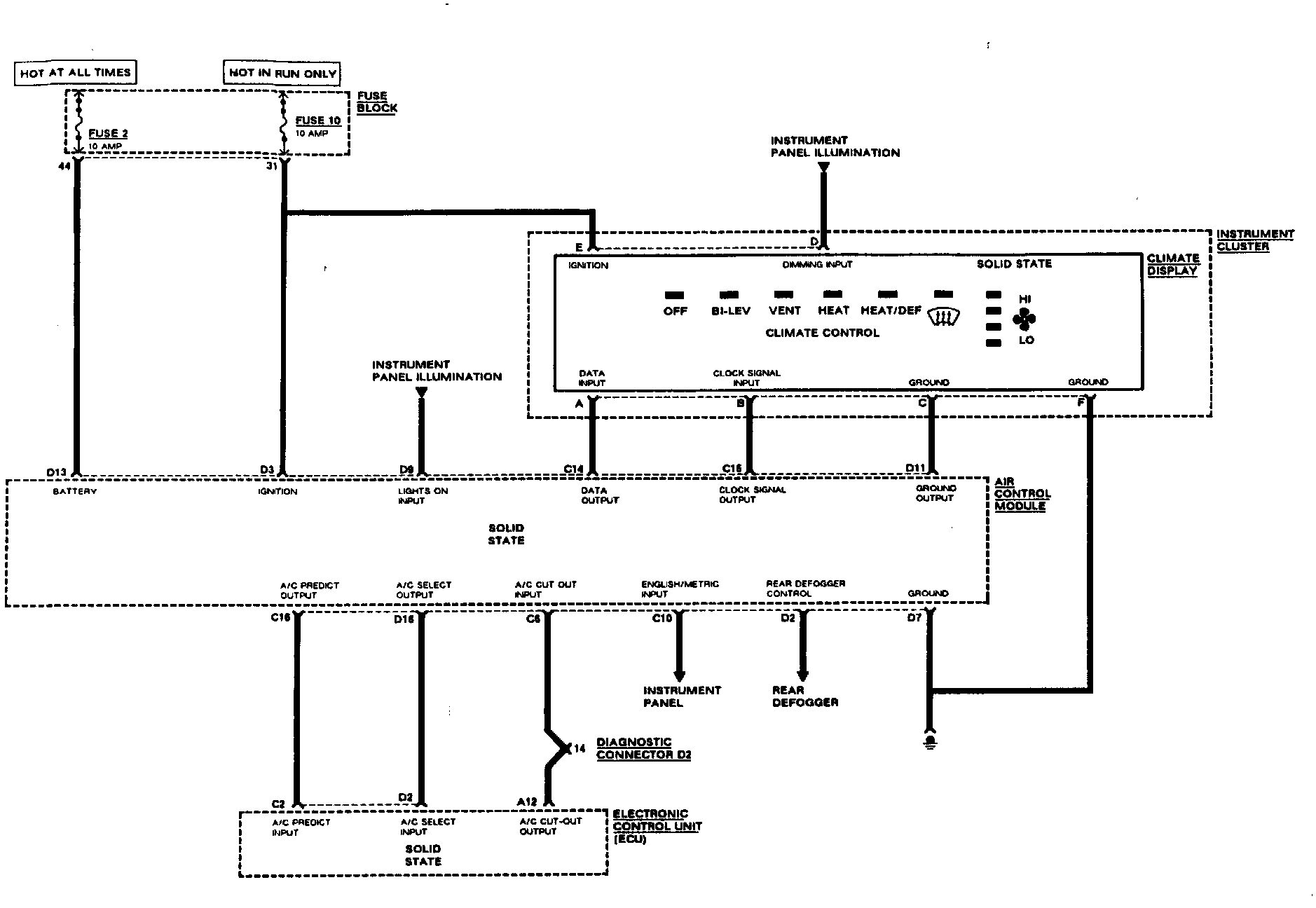

Heater Controls Climate Display:
