1052 MAP Sensor Out of Limits

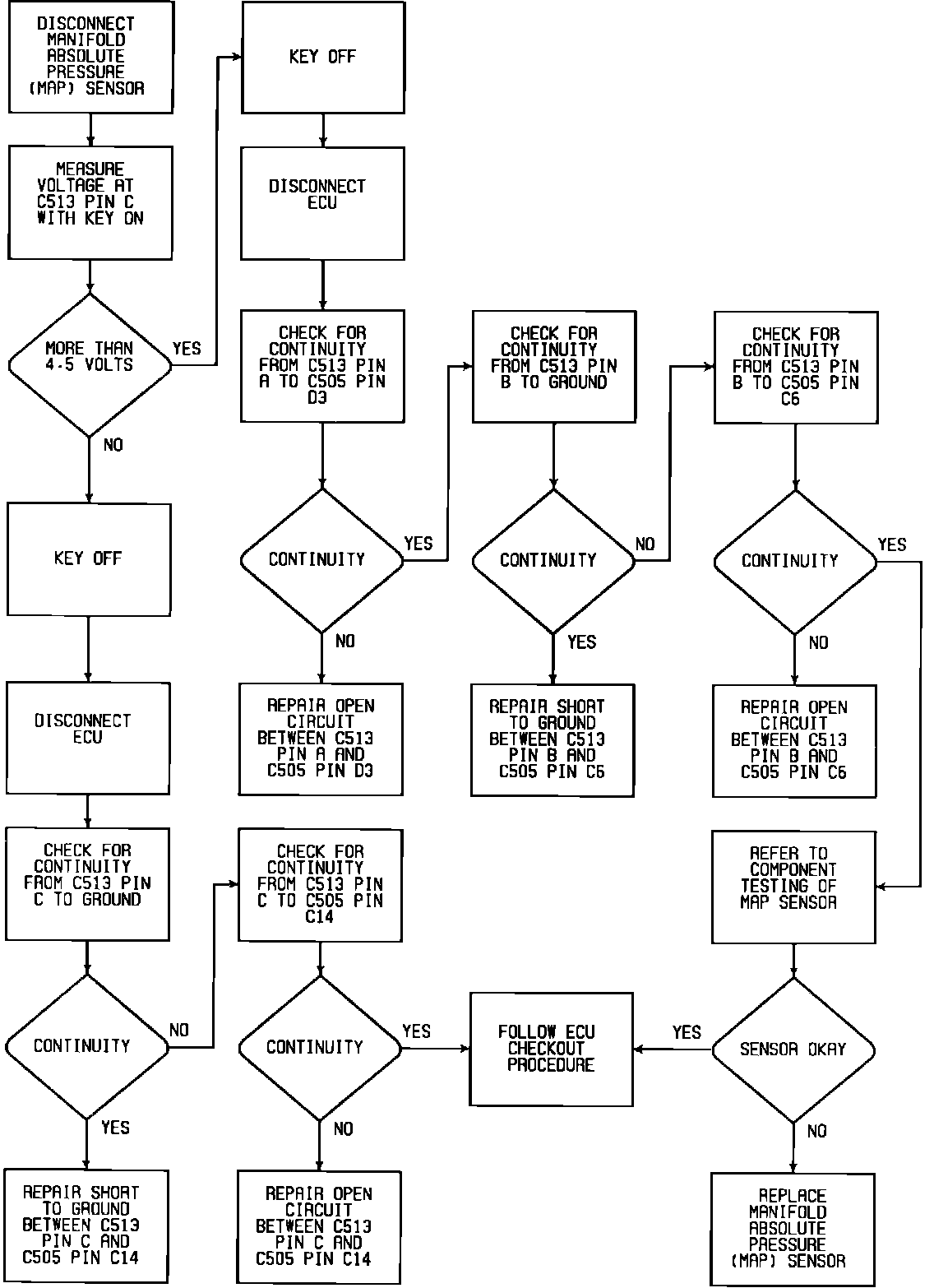

Code 1052:






Code 1052


Wiring Diagram:





Code 1052 Wiring Diagram
