Home >> Eagle >> 1988 >> Premier L4-150 2.5L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> 4 Digit Codes >> 1033 Idle Speed Increase Line Low

1033 Idle Speed Increase Line Low

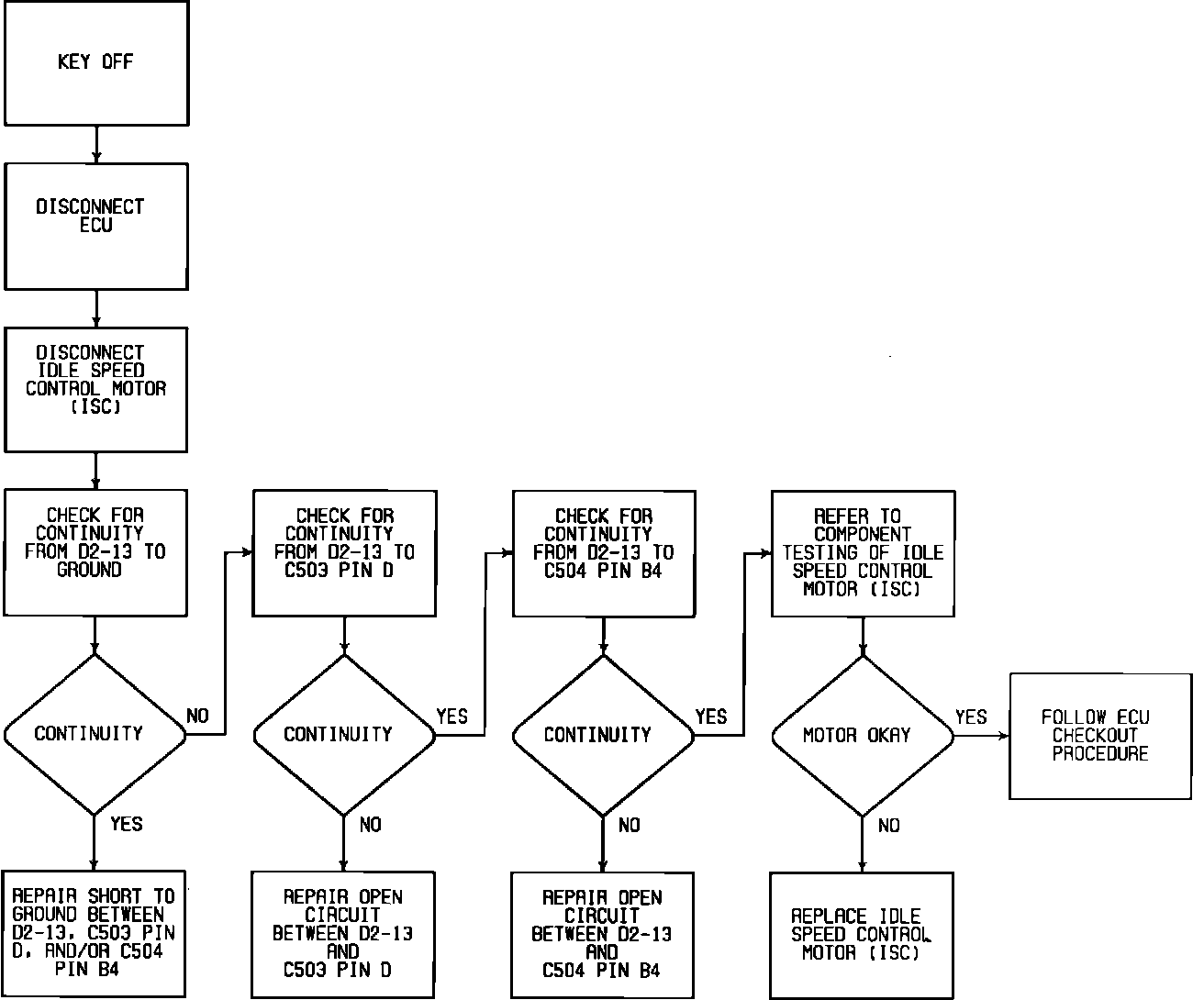

Code 1033:





Code 1033


Wiring Diagram:





Code 1033 Wiring Diagram
