Eagle
>>
1988
>>
Medallion L4-2165cc 2.2L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Rear Wiper/Washer System
Rear Wiper/Washer System

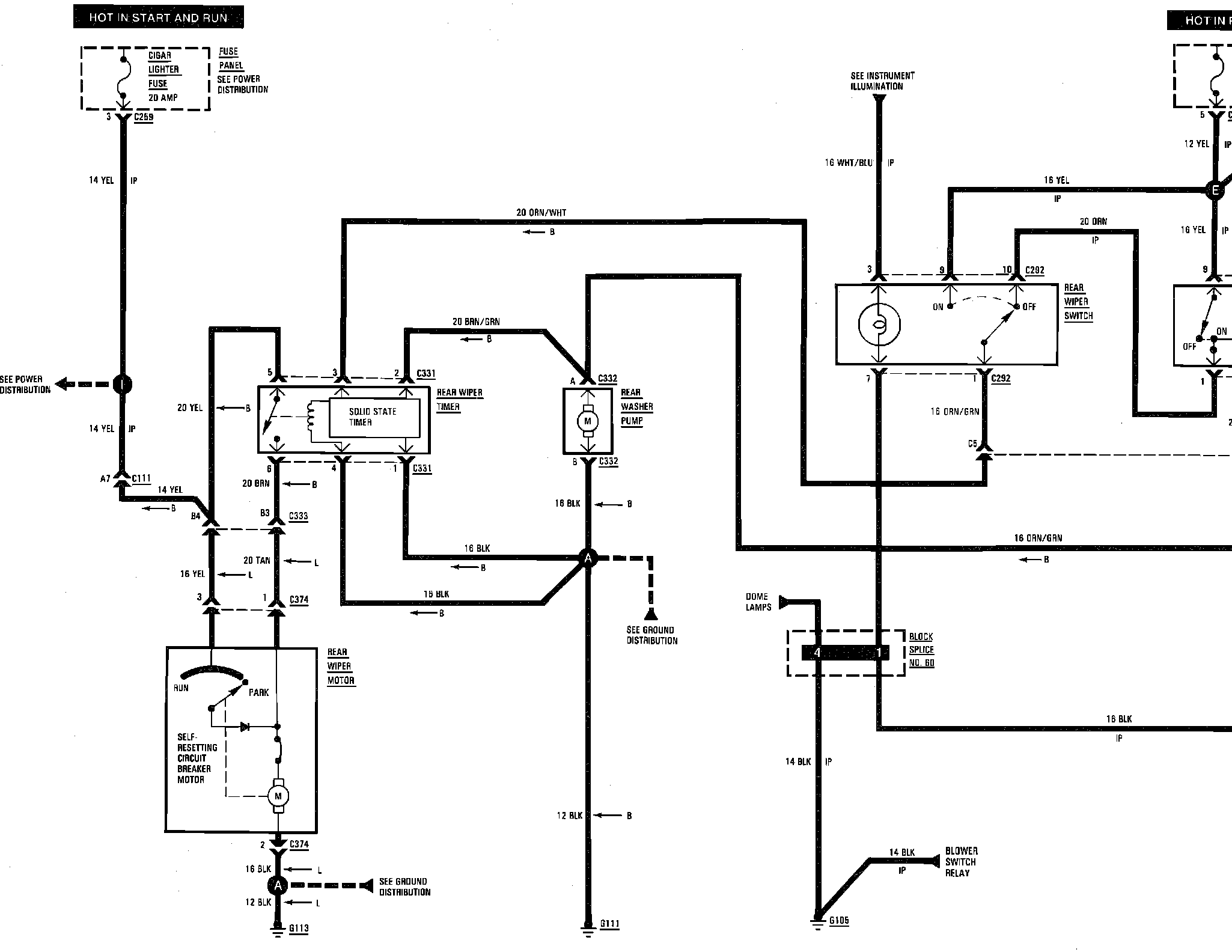

:�KWiper & Waher - Rear Wiring Circuit:
