Component Replacement, Regulator Removal & Installation Information

COMPONENT REPLACEMENT

The servo control (regulator) and the control module are different between the two systems. The control module is serviced as described in M.R. 289. The regulator is serviced as described in this TSB. All other components are serviced as described in the M.R. 289.



REGULATOR REMOVAL

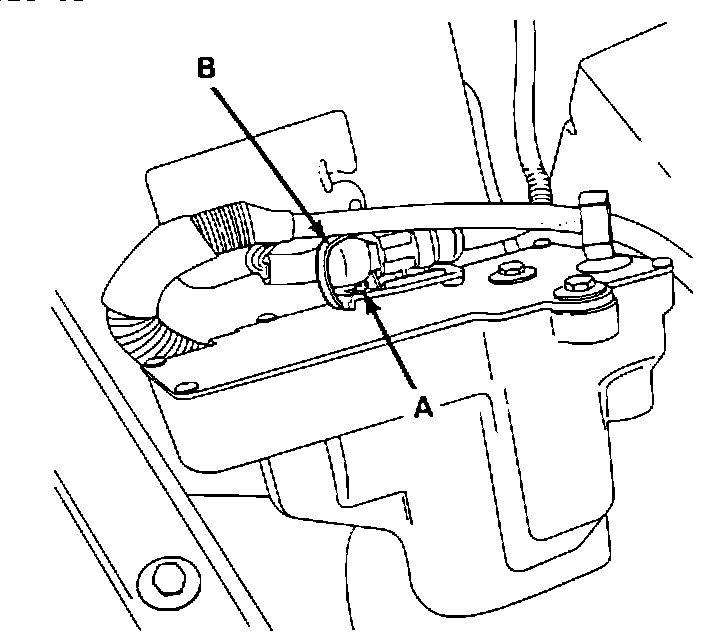

1. Press retaining clip (A) holding windshield wiper/washer connector and slide connector out of the bracket.
2. Position the tie strap (B) so that the windshield wiper/washer connector can be separated. DO NOT cut the tie strap. Separate the connector.

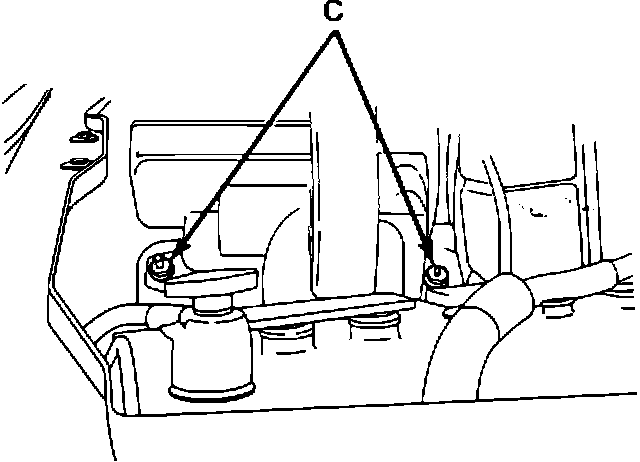

3. Remove two nuts (C) holding the regulator housing to the inner fender.

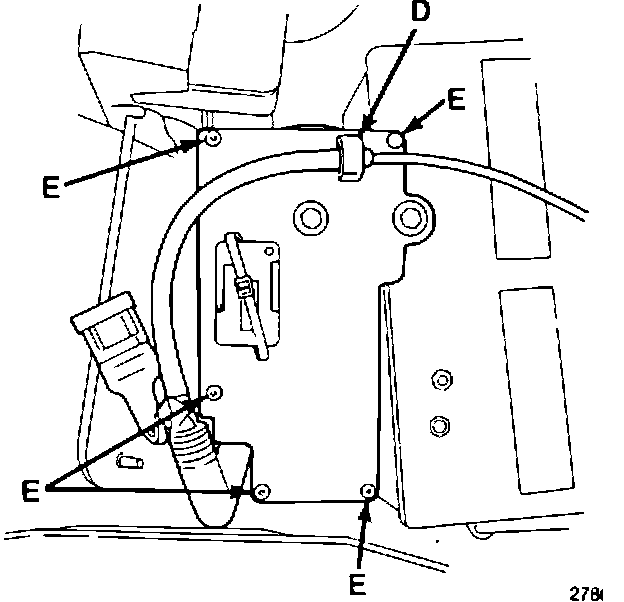

4. Disconnect clip (D) holding the vacuum line to the housing.

5. Remove torx head screws (E).



6. Slide regulator assembly out of housing.

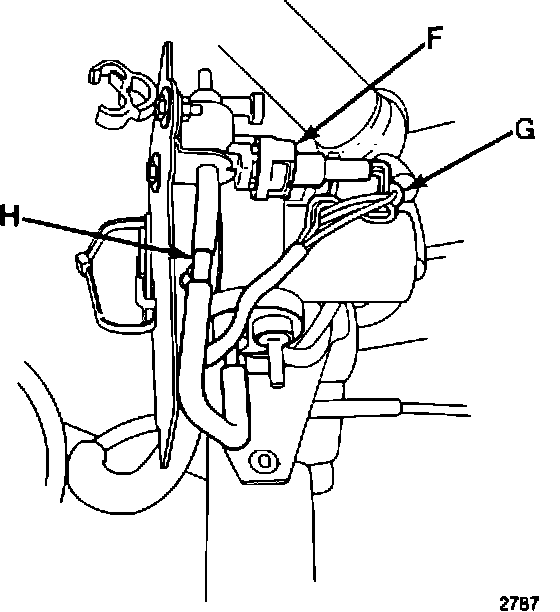

7. Disconnect safety solenoid connector (F).

8. Disconnect vacuum control connector (G).

9. Disconnect vacuum line (H).

10. Remove regulator.
REGULATOR INSTALLATION

1. Connect vacuum hose and electrical connectors.

2. Slide housing over regulator assembly.

3. Install torx head screws.

4. Install regulator to inner fender with two nuts.

5. Install vacuum line into clip and lock clip.

6. Assemble windshield wiper/washer connector making sure that the tie strap is around the connector.

7. Slide the windshield wiper/washer connector into the bracket.
