Eagle
>>
1988
>>
Medallion L4-2165cc 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G105
G105

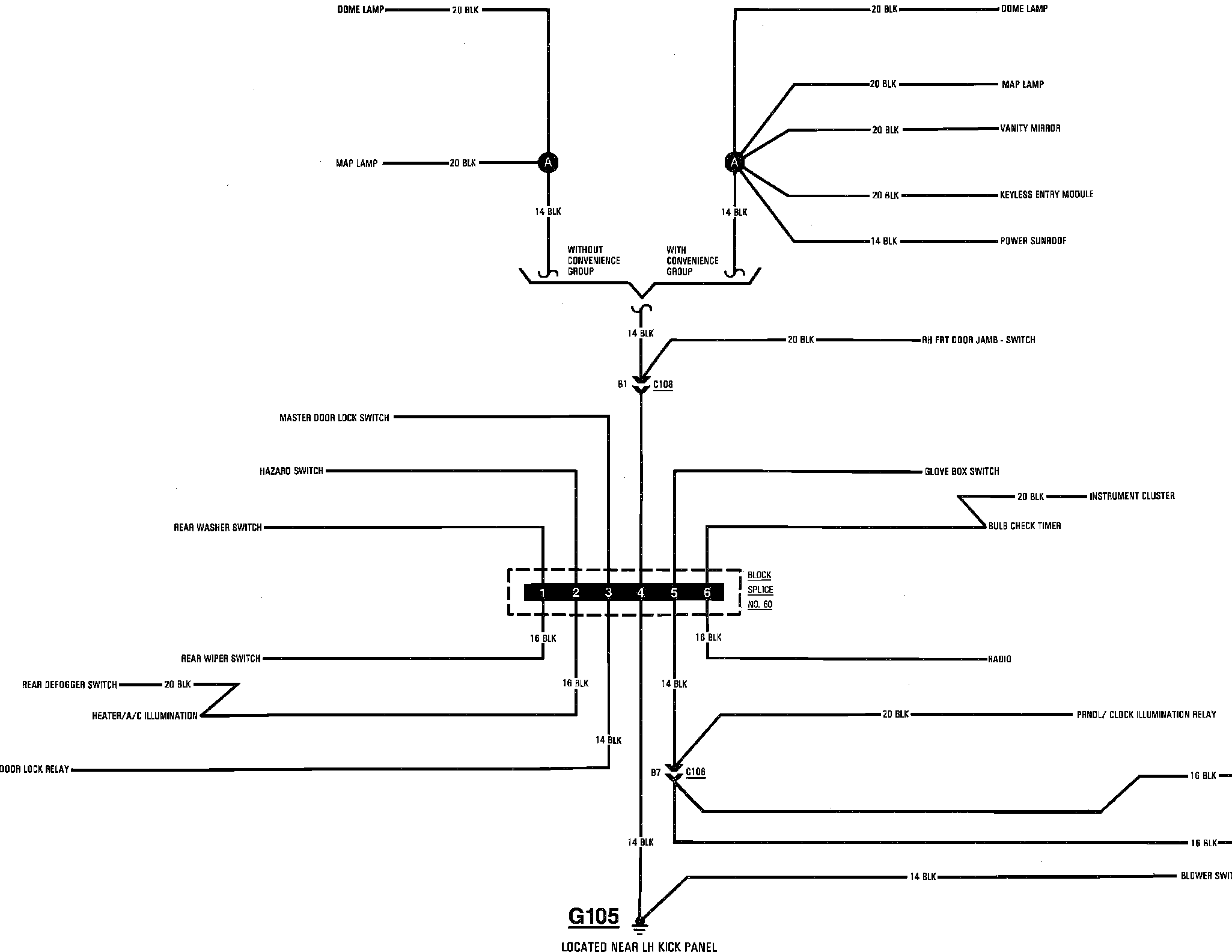

9A�=Ground Distribuition - G105:
