Eagle
>>
1988
>>
Medallion L4-2165cc 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Hazard Warning Lamps
Hazard Warning Lamps

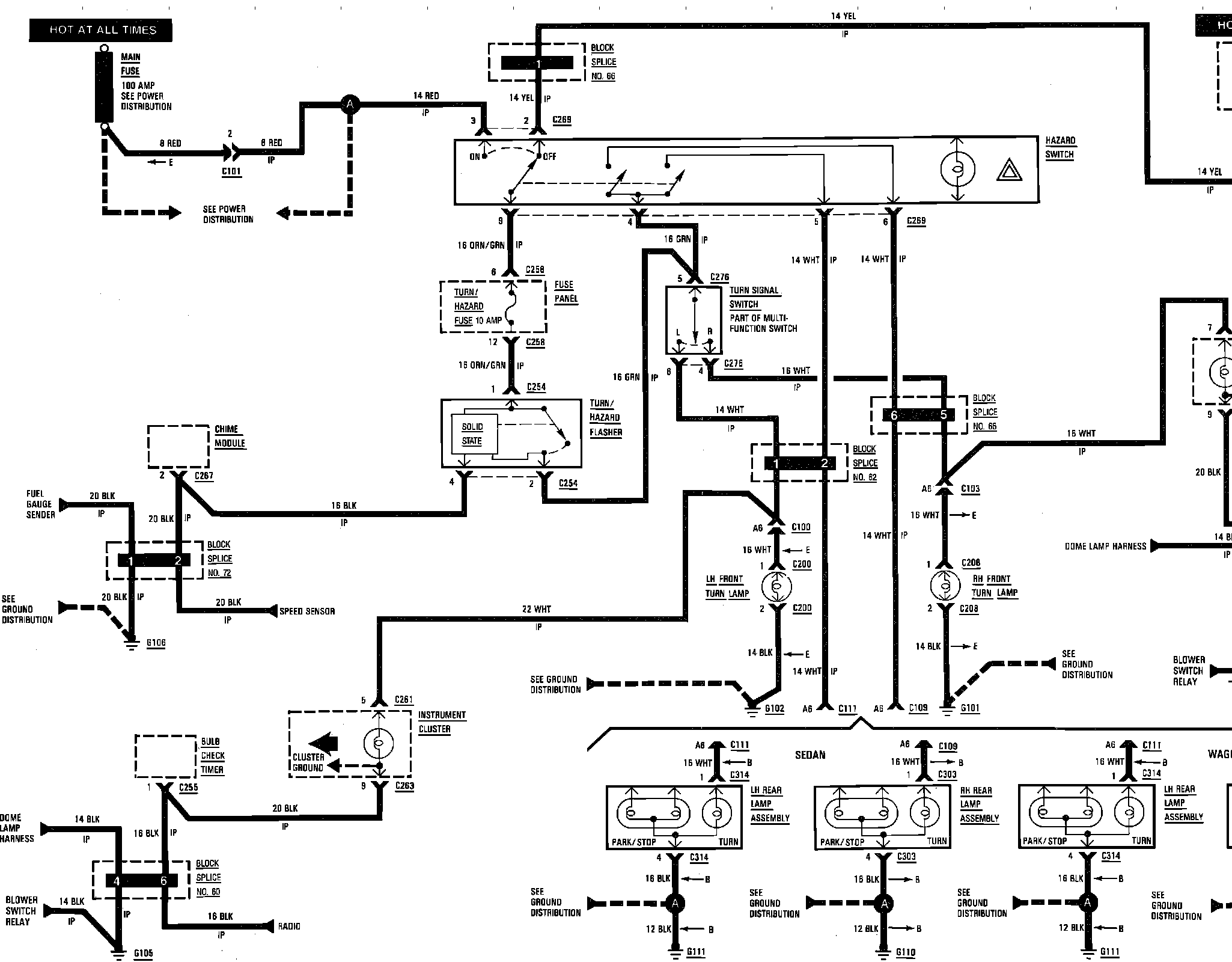

��cIHazard & Turn Lamps Wiring Circuit:
