Eagle
>>
1986
>>
Eagle Wagon L6-258 4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
Mirrors

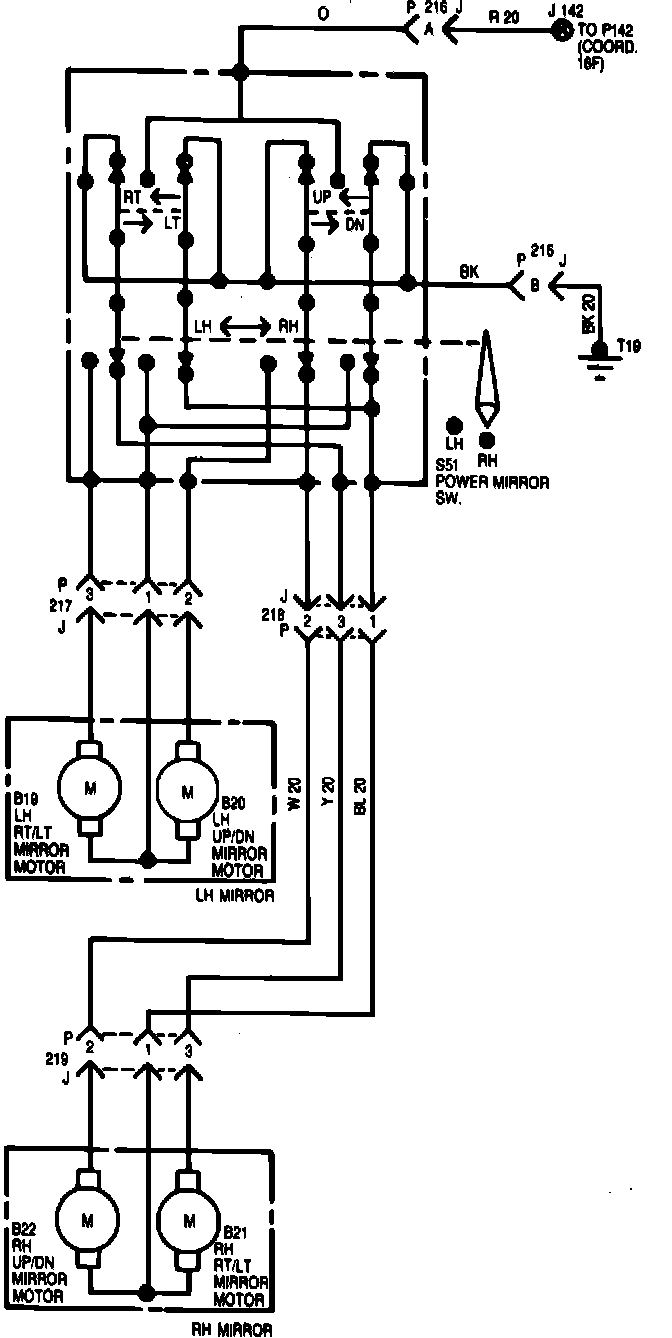

Fig. 23 Power Mirror Wiring Circuit:
