Rollover Check Valve

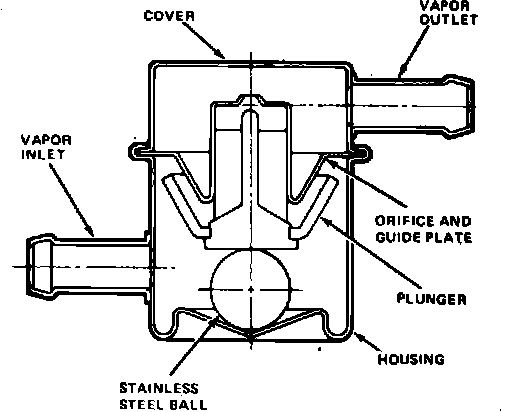

Fig. 18 Rollover check valve:

This valve, Fig. 18, prevents the flow of fuel through the fuel line should the vehicle be rolled over. The check valve consists of a plunger and a stainless steel ball. When inverted, the stainless steel ball pushes the plunger against its seat.
