Eagle
>>
1986
>>
Eagle Sedan L6-258 4.2L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Trailer Lighting Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

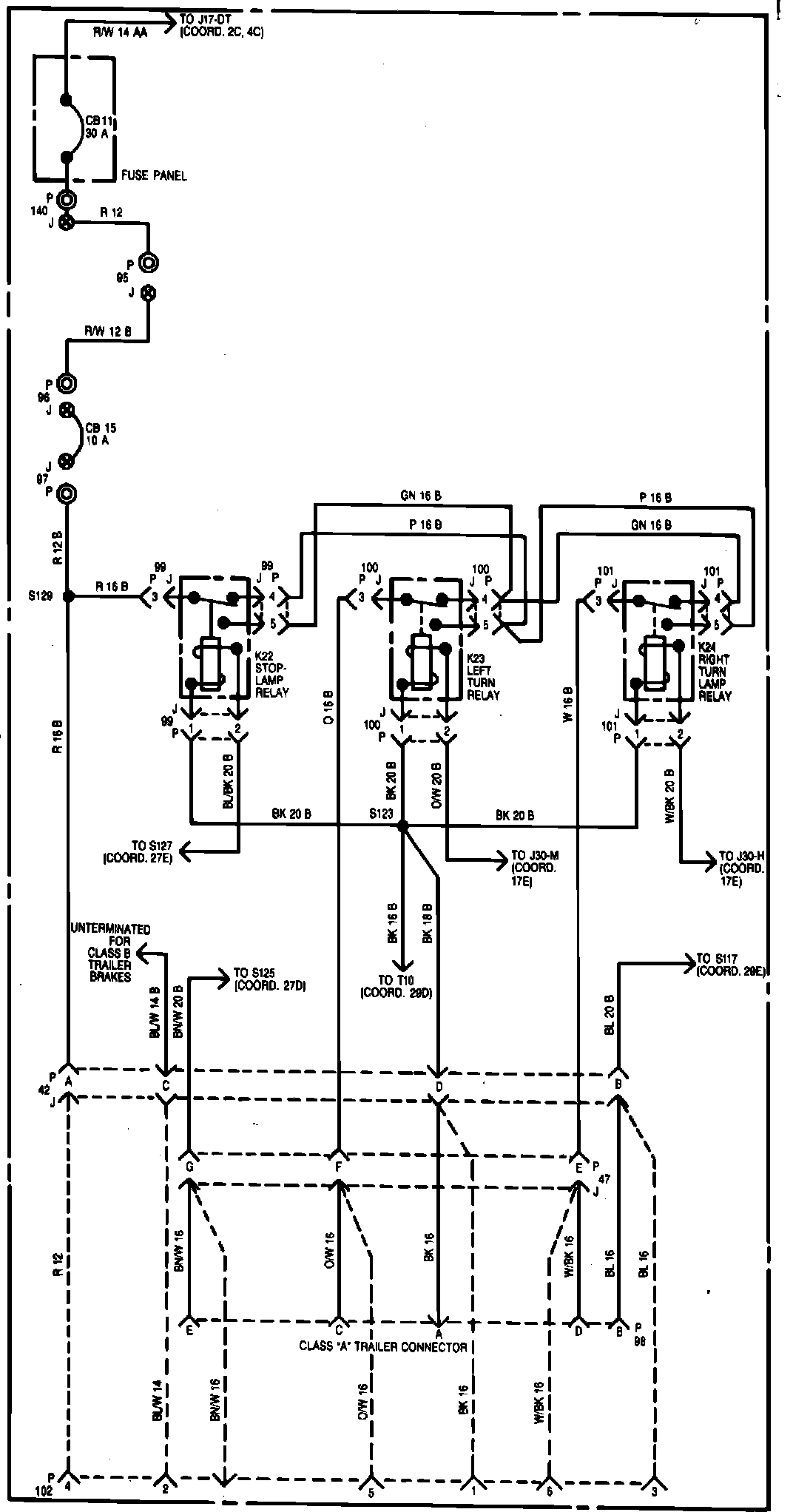

Fig. 29 Trailer Towing Option Wiring Circuit:
