Oil Pressure Warning Lamp/Indicator
Oil Pressure Warning Lamp/Indicator

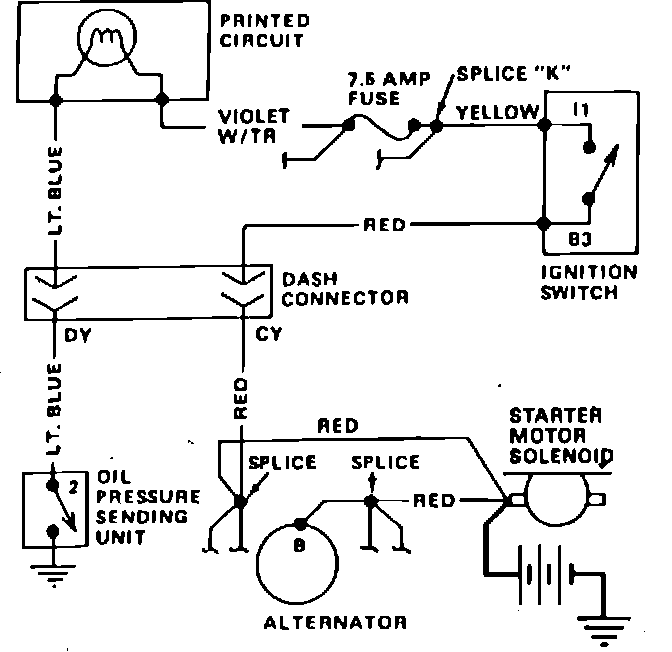

Fig. 22 Oil Pressure Warning Lamp Wiring Circuit:
