Test 3 - Open Loop Switch Test

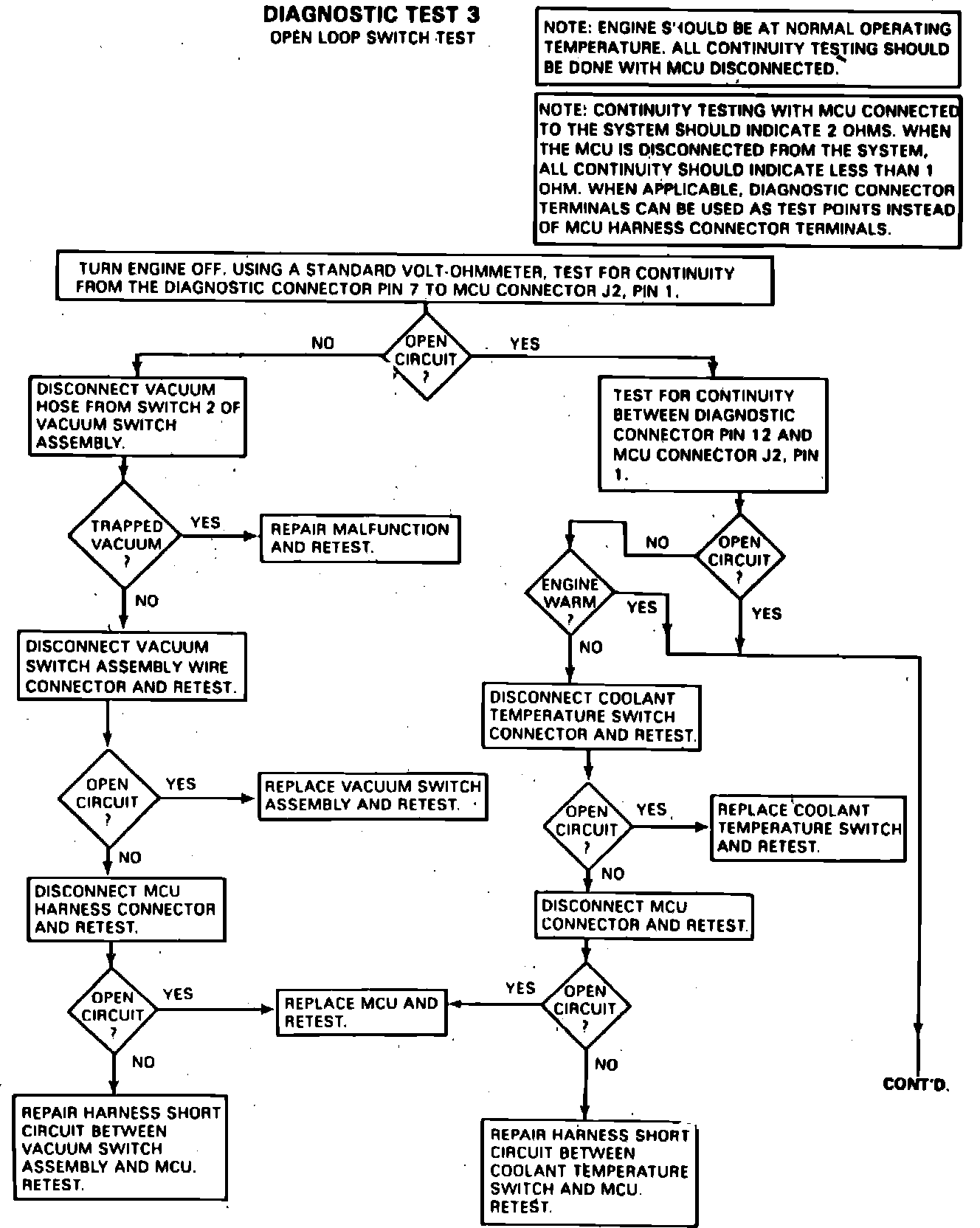

Diagnostic Test 3 (Part 1 of 5):

Diagnostic Test 3 (Part 1 of 5)

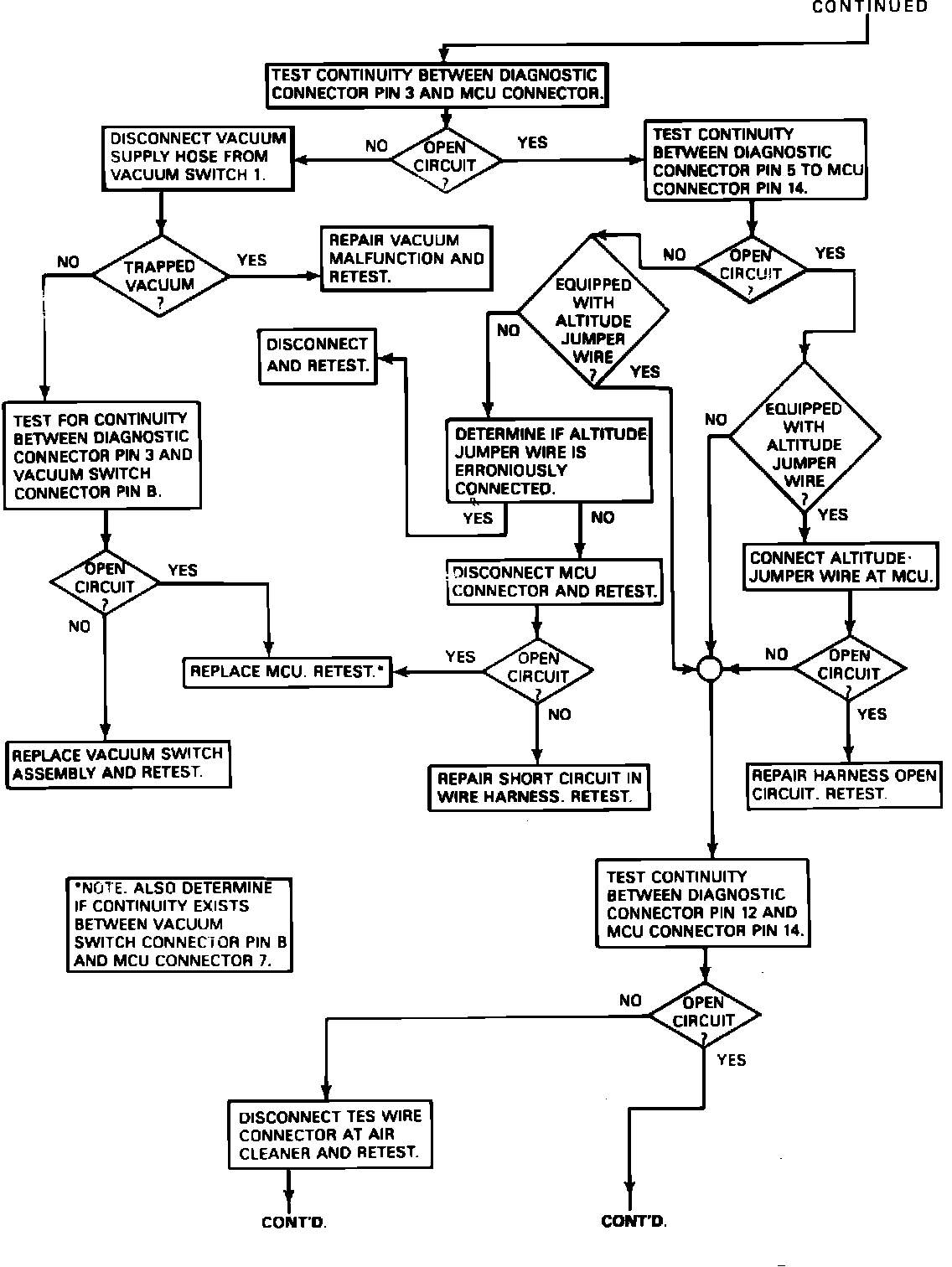

Diagnostic Test 3 (Part 2 of 5):

Diagnostic Test 3 (Part 2 of 5)

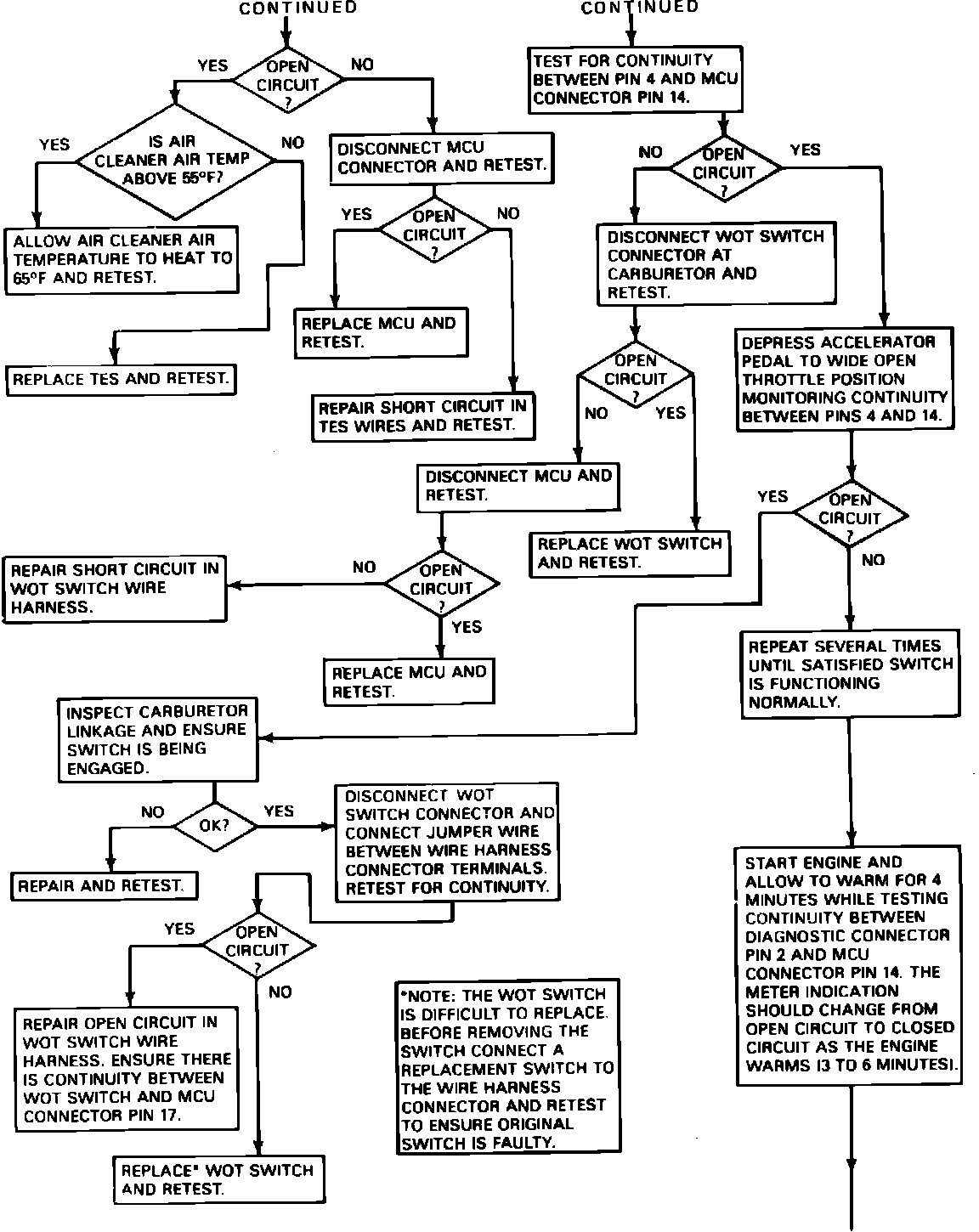

Diagnostic Test 3 (Part 3 of 5):

Diagnostic Test 3 (Part 3 of 5)

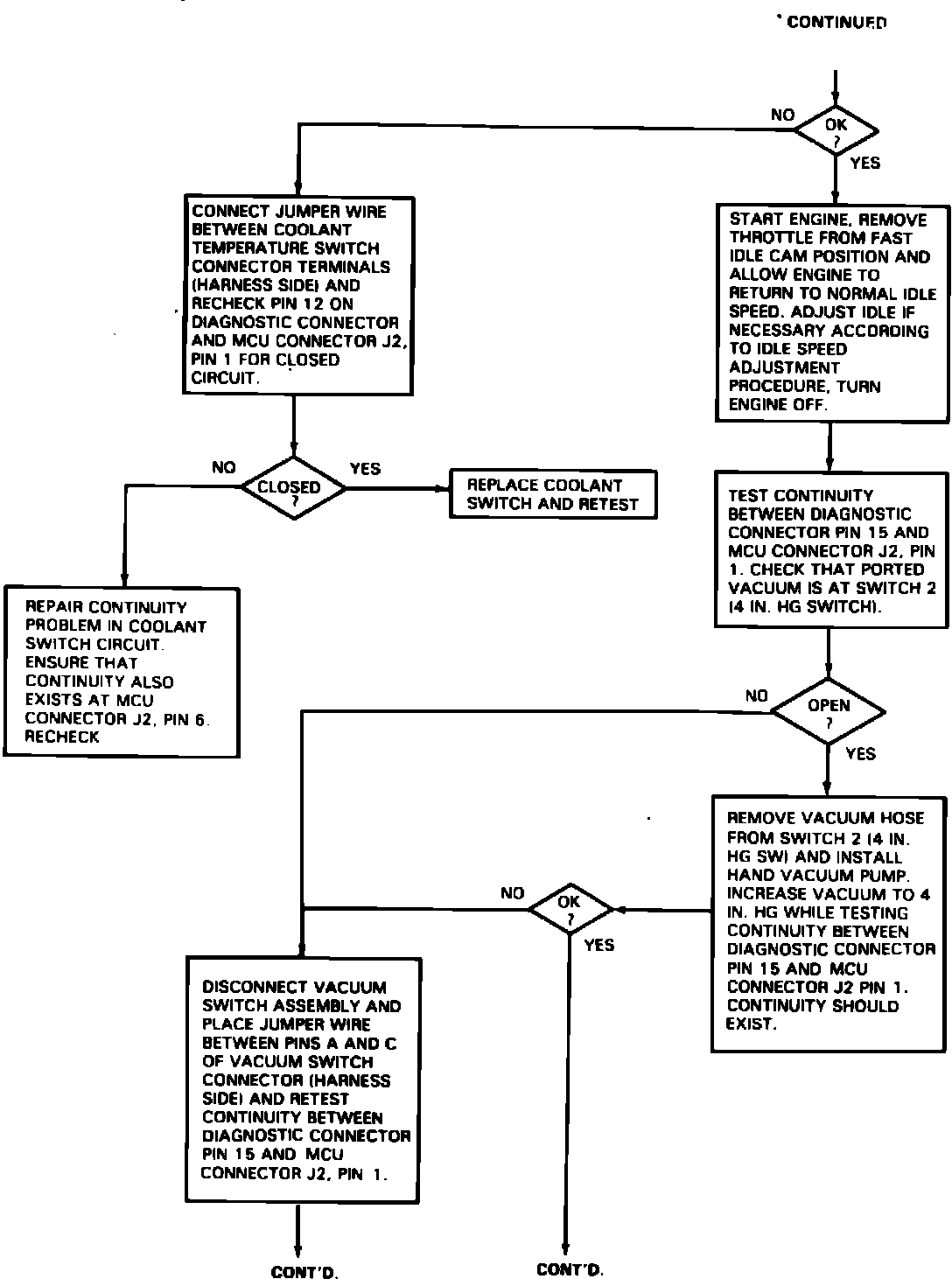

Diagnostic Test 3 (Part 4 of 5):

Diagnostic Test 3 (Part 4 of 5)

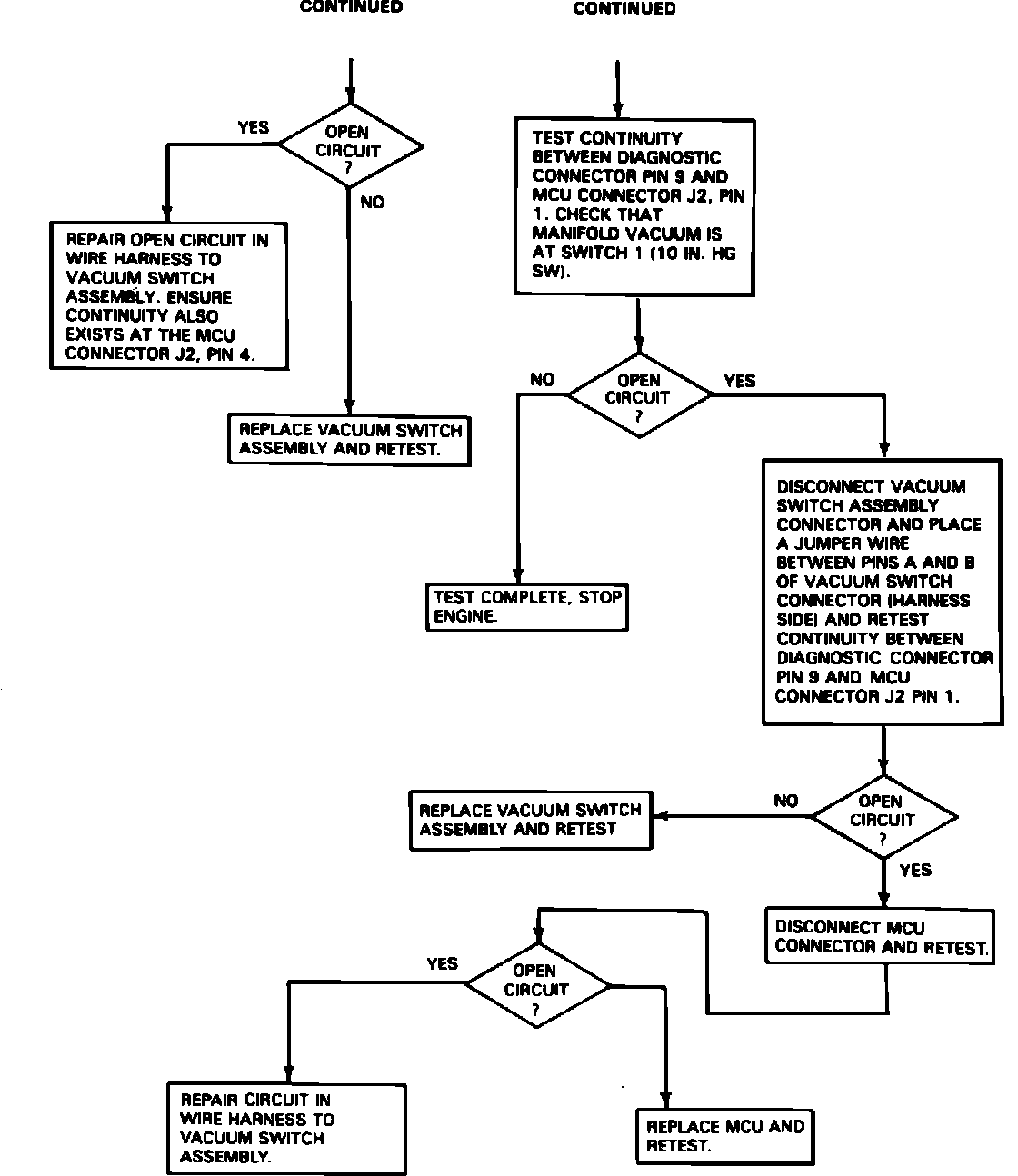

Diagnostic Test 3 (Part 5 of 5):

Diagnostic Test 3 (Part 5 of 5)
