Bendix Sliding Caliper

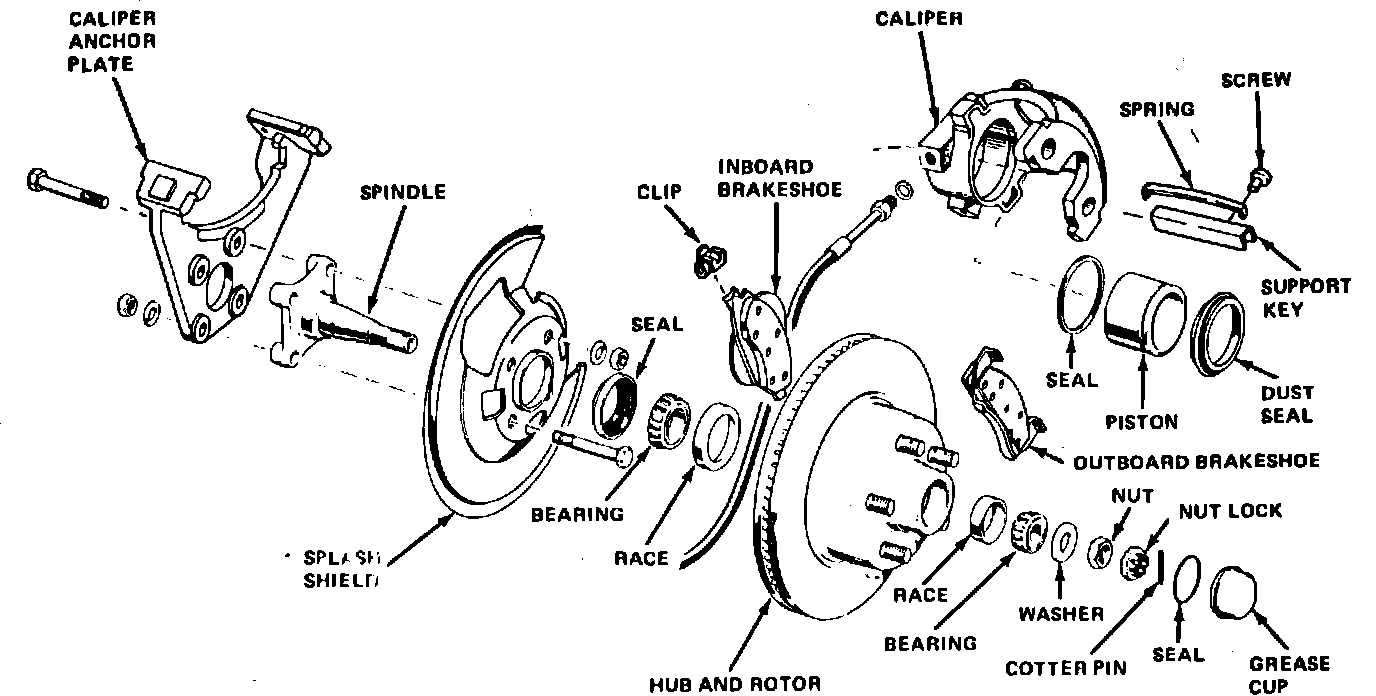

Fig. 1 Bendix sliding caliper disc brake (Typical):

Fig. 2 Caliper assembly:

This sliding caliper disc brake assembly incorporates a hub and rotor assembly, caliper, brake shoes and linings, caliper anchor plate and a splash shield.

Cooling fins are cast into the rotor between the two braking surfaces to ventilate and cool the rotor. The sliding caliper is positioned in, and slides on, the abutment surfaces on the leading and trailing edges of the caliper anchor plate. A caliper support key, located between the forward edge of the caliper and abutment surface, is secured with a retaining screw. A support spring is installed between the support key and caliper to maintain tension on the support key.

The caliper is a one-piece casting containing the piston, piston seal and dust seal. The hydraulic seal between the caliper piston and piston bore is achieved by a square cut piston seal, located in a machined groove in the piston bore. The dust seal seats in a recess machined on the edge of the piston bore and into a groove in the caliper piston.
