Clutch Pedal Assembly: Adjustments

PEDAL FREEPLAY
1982---83 4-151, EAGLE W/6-258 & 1983---84 4-150
These models are equipped with a hydraulic actuated clutch and no adjustment is required.

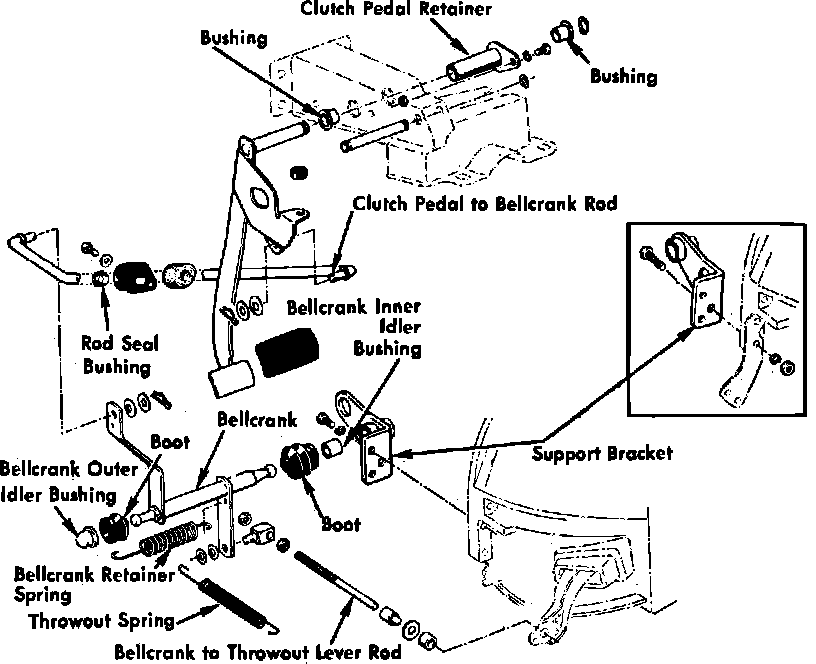

Fig.. 1 Typical clutch linkage:

EXC. 4-150, 151 & 6-258
In order to provide sufficient free movement of the clutch release bearing when the clutch is engaged and pedal fully released, pedal free play should be 7-8 inch to 11-8 inch with desired freeplay of 11-8 inch.
Adjustment for pedal free play is made by varying the length of the beam or link to the release lever rod. Lengthening this rod reduces pedal travel; shortening it increases pedal play
