Rear

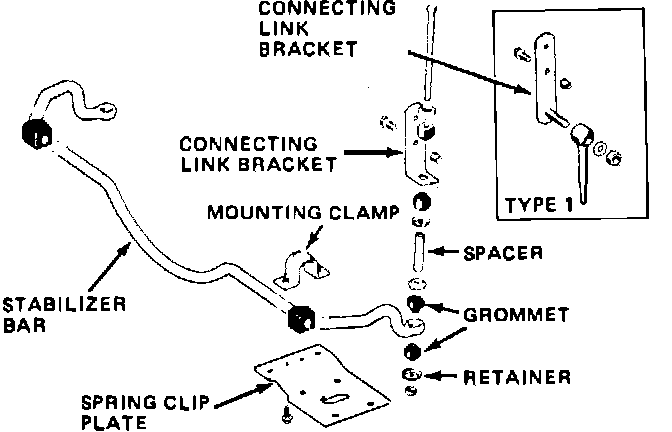

Fig. 5 Rear stabilizer bar. Concord & Spirit:

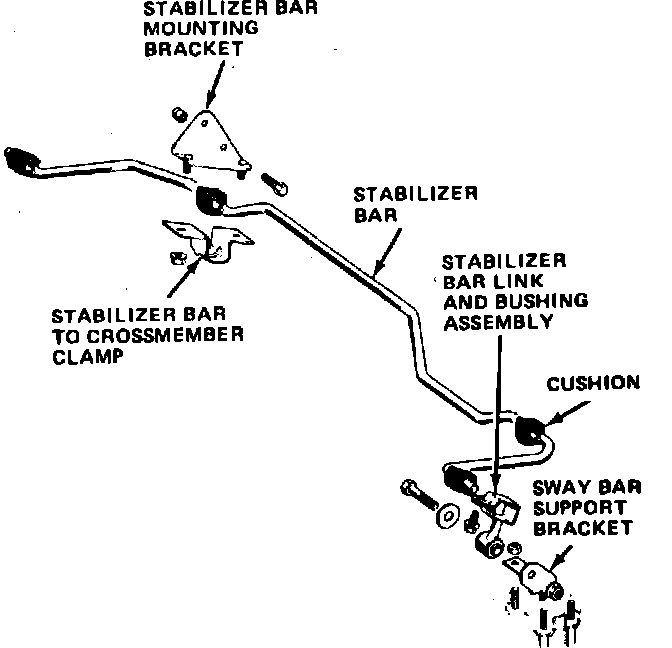

Fig. 6 Rear stabilizer bar. Eagle:

CONCORD, EAGLE & SPIRIT
1. Raise and support rear of vehicle, then remove nuts and grommets attaching stabilizer to connecting links.
2. Remove bolts attaching stabilizer bar mounting clamps to spring clip plates and remove stabilizer bar.
3. Reverse procedure to install. Torque link locknuts to 7 ft. lbs. and mounting clamp bolts to 25 ft. lbs.
