Eagle
>>
1983
>>
Concord L6-258 4.2L VIN C 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
High Altitude
>>
Automatic Trans.
Automatic Trans.

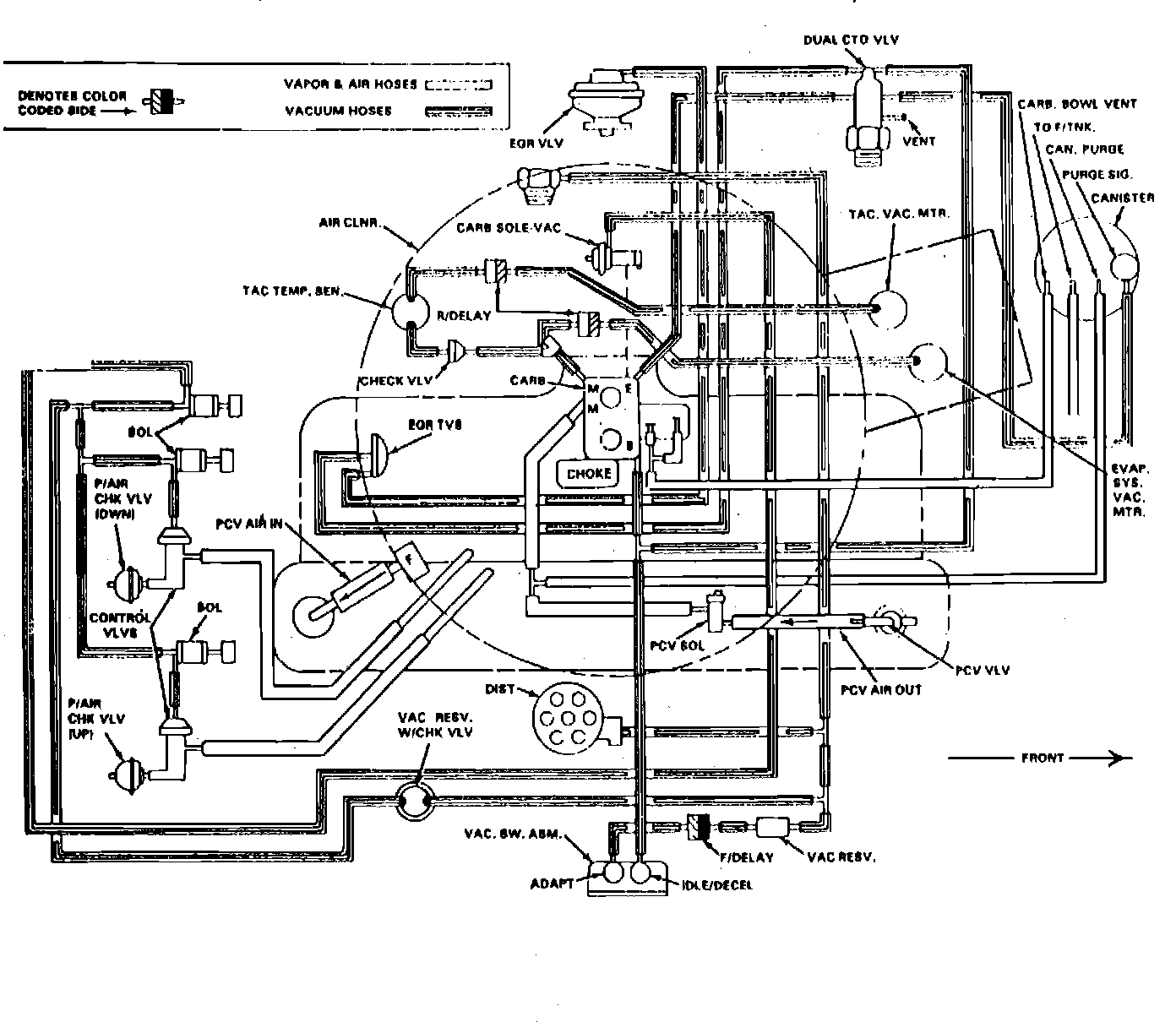

Fig. 28 1983 AMC Concord & Spirit 6-258, with auto. trans., High Alt. & exc. Calif.:
