Radio Antenna Module - Removal

REMOVAL

1. Disconnect the IBS/negative battery cable assembly from the negative battery post.

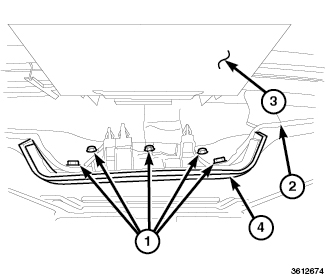

2. Using a trim stick or another suitable wide flat-bladed tool, carefully pry between the Center High Mounted Stop Lamp (CHMSL) (3) and the CHMSL cover (4). The CHMSL cover (4) is secured to the headliner by five stamped nuts (1). As you pry on the trim stick, carefully pull down on the sides of the CHMSL cover far enough to disengage the three snap clips that secure it to the inner rear roof header.

NOTE: Be extremely careful not to pull too hard on the headliner (2) which could cause it to damage.

3. Once the snap clips of the CHMSL cover have been released, the cover can be removed by pulling down on the headliner and removing the five stamped 10mm nuts that secure it to the headliner (1).

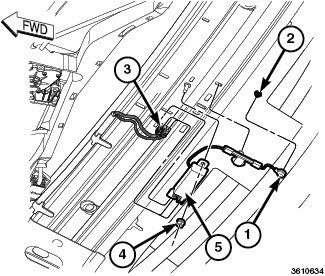

4. Disconnect the antenna module pigtail (1) from the antenna grid on the rear window (2).
5. Disconnect the coax and the 12 volt supply connectors (3) from the antenna module (5).
6. Remove the mounting fastener (4) and the antenna module (5).
