Radio Antenna Module - Installation

INSTALLATION





1. Position the module (5) into place.
2. Install and tighten the mounting fastener (4).
3. Connect the wire connector and the antenna coax cable to the antenna module (3).
4. Connect the pigtail (1) to the antenna grid (2).

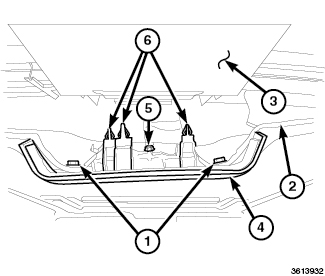

5. Start one of the 10mm stamped nuts to the center front stud of the CHMSL cover (5).
6. Position the CHMSL cover (4) to the headliner and start two of the 10mm stamped nuts to the rear holes in the headliner (1). Hand tighten the nuts.
7. Center the cover and apply pressure to push the three snap clips into the rear roof header.
8. Connect the negative battery cable to the negative battery post.
