Installation

INSTALLATION

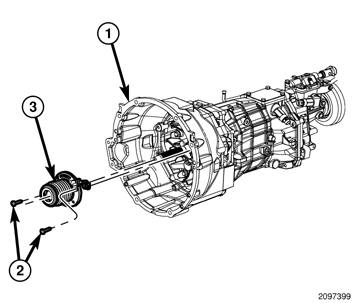

1. Position the clutch release bearing/slave cylinder (3) onto input shaft.
2. Install the two bolts (2) that secure the clutch release bearing/slave cylinder to the transmission (1). Tighten the bolts to 20 Nm (15 ft. lbs.).
3. Install the transmission .
4. Lower the vehicle.

NOTE: While bleeding the clutch system be certain the clutch pedal returns to the most upright position. It may take as many as two hundred clutch strokes to bleed the system.

5. Bleed the clutch system Service and Repair.
