Power Steering Cooler - Installation

SRT





1. Install center tube of cooler over mounting clips attached to cooling module. Push cooler past clip retaining tabs allowing it to lock into place.

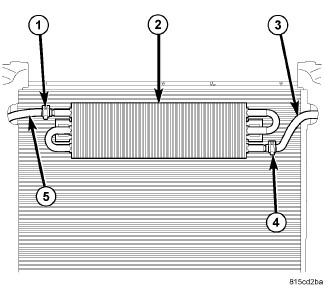

2. Slide return hose to reservoir (3) onto outlet of cooler (2). Install clamp (4) securing hose in place.
3. Slide return hose from gear (5) onto inlet of cooler (2). Install clamp (1) securing hose in place.
4. Install belly pan Belly Pan - Installation.
5. Lower vehicle.





6. Connect battery negative cable (2) to battery post. It is important that this is performed properly.
7. Fill and bleed power steering system . Service and Repair
