Active Damping Control Module (ADCM)

C2206-00-VEHICLE CONFIGURATION MISMATCH

For a complete wiring diagram, refer to the Wiring Information.

NOTE:
If the TIPM has been serviced make sure that the Restore Vehicle Configuration is performed before continuing with this diagnostic procedure.

- When Monitored:
Ignition on.

- Set Condition:
This DTC will set if any of the learned Vehicle Configuration data from the CAN Bus has changed.





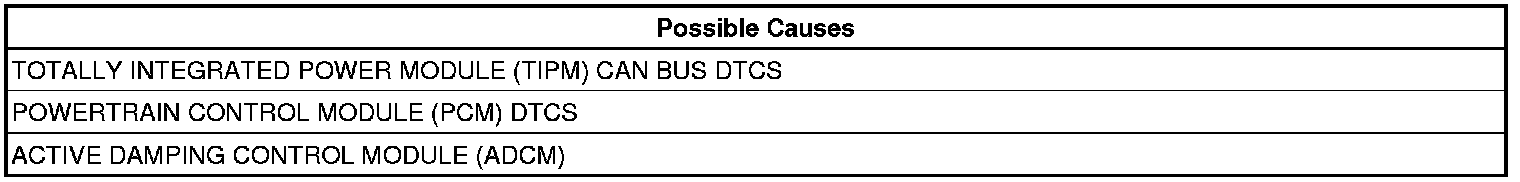

Diagnostic Test

1. TOTALLY INTEGRATED POWER MODULE (TIPM) CAN BUS DTCS ARE PRESENT
1. With the scan tool, read TIPM DTCs.

Are there any TIPM CAN BUS DTCs present?

Yes
- Perform the appropriate diagnostic procedure. Testing and Inspection.

No
- Go To 2

2. POWERTRAIN CONTROL MODULE (PCM) DTCS ARE PRESENT
1. With the scan tool, read Powertrain Control Module (PCM) DTCs.

Are there any PCM DTCs present?

Yes
- Perform the appropriate diagnostic procedure. Testing and Inspection.

No
- Using the schematics as a guide, check the ADCM pins, terminals, and connectors for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the Active Damping Control Module (ADCM) Module. .
- Perform the ADCM VERIFICATION TEST. Active Damping Control Module (ADCM) Verification Test.
