Dodge
>>
2010
>>
Charger V6-2.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>

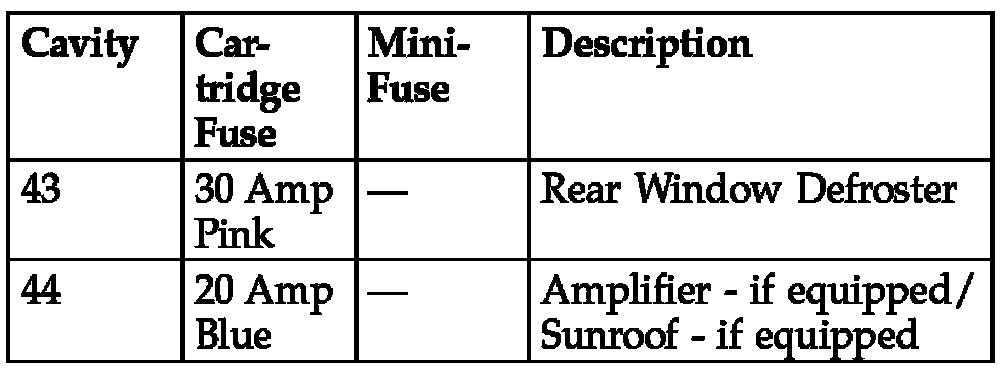

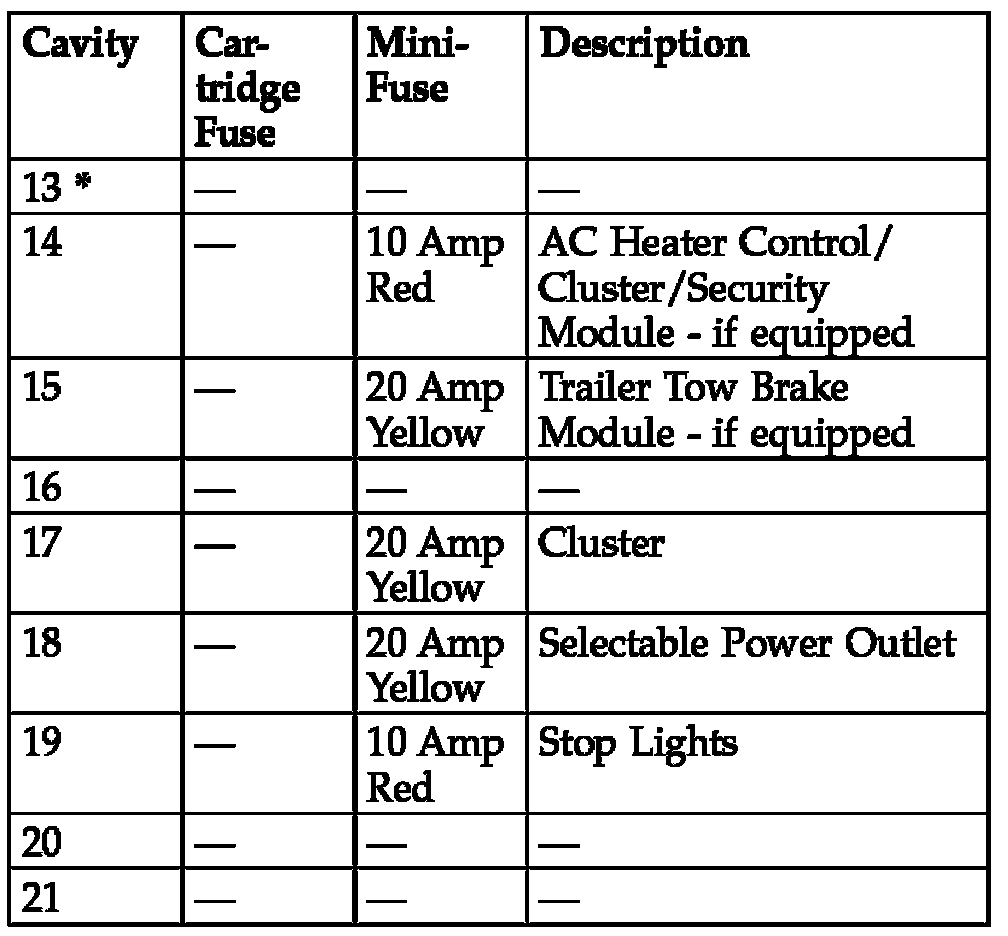

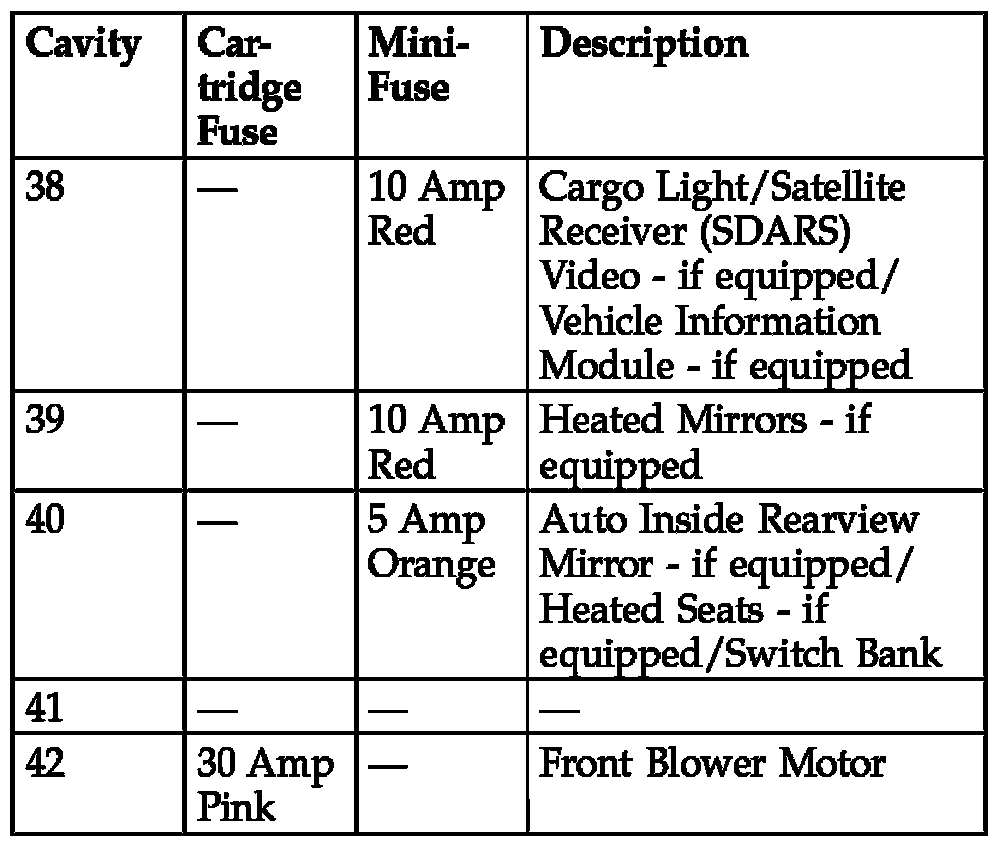

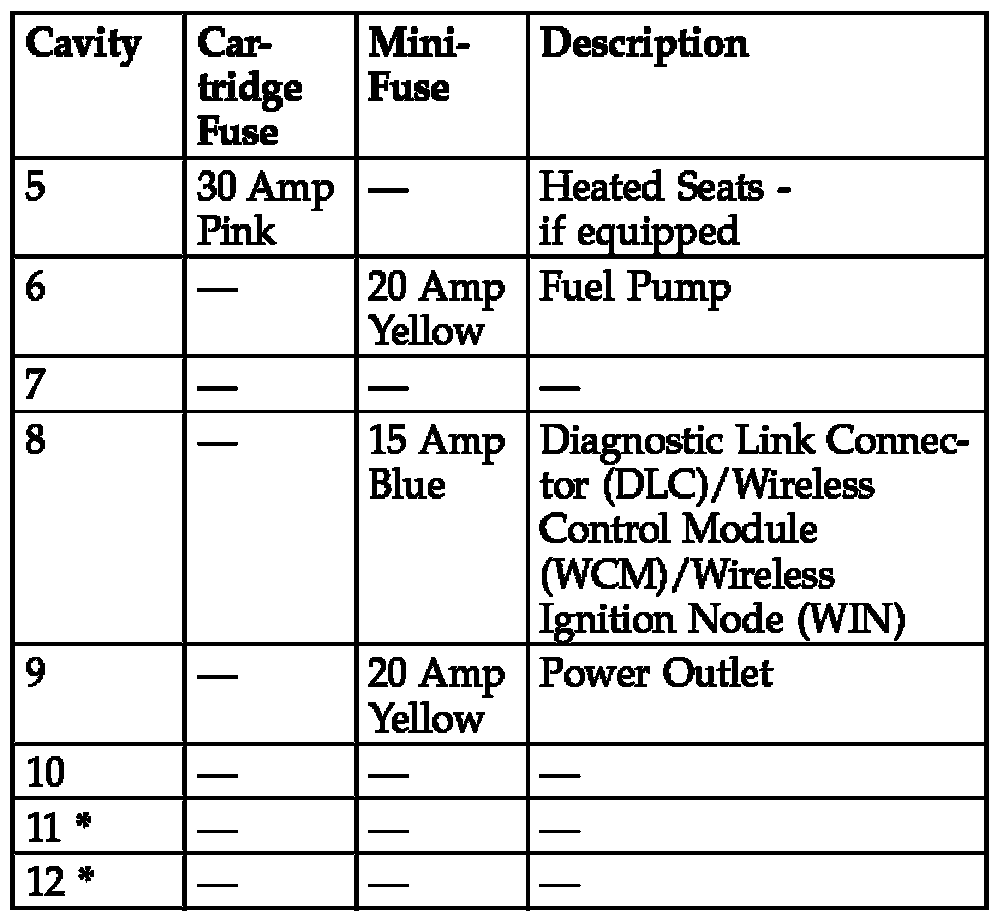

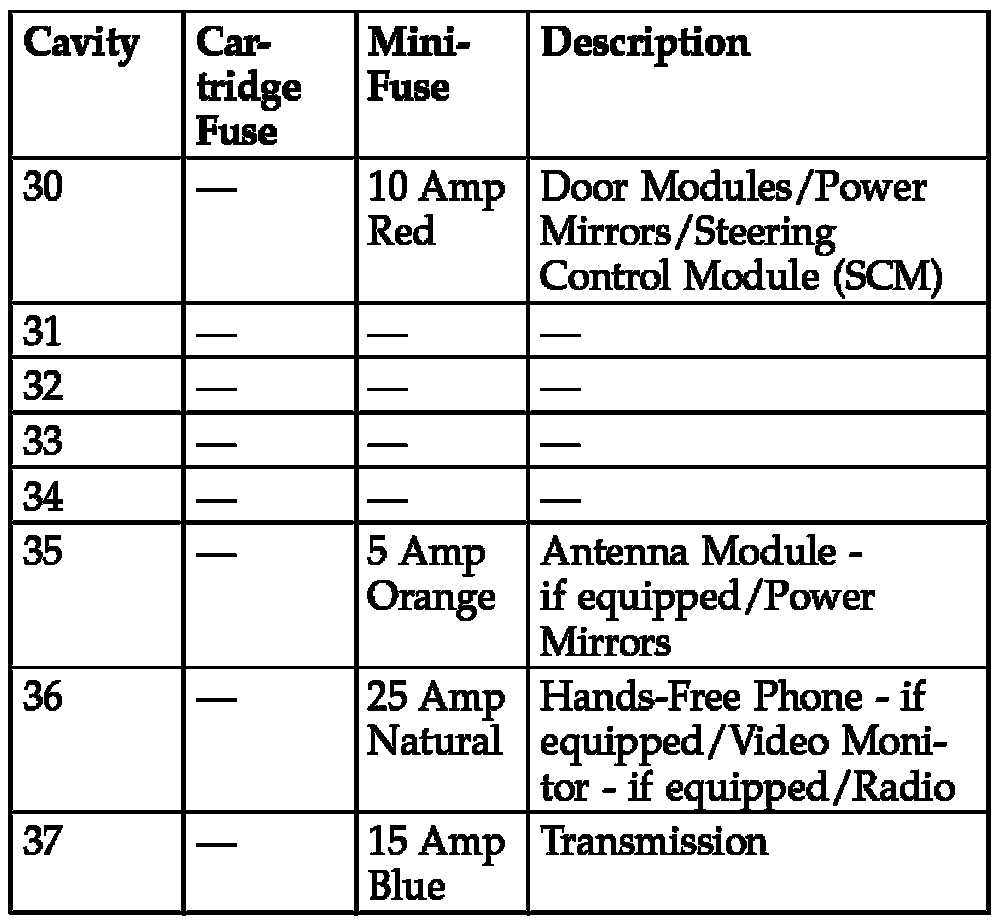

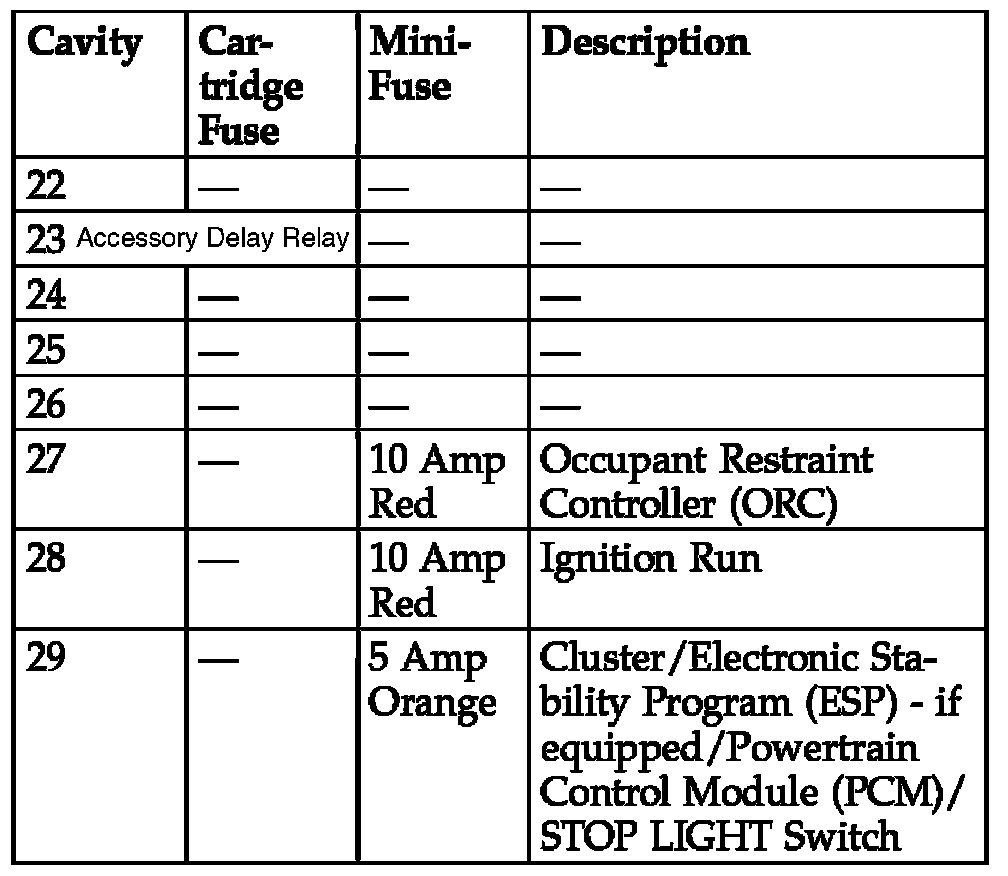

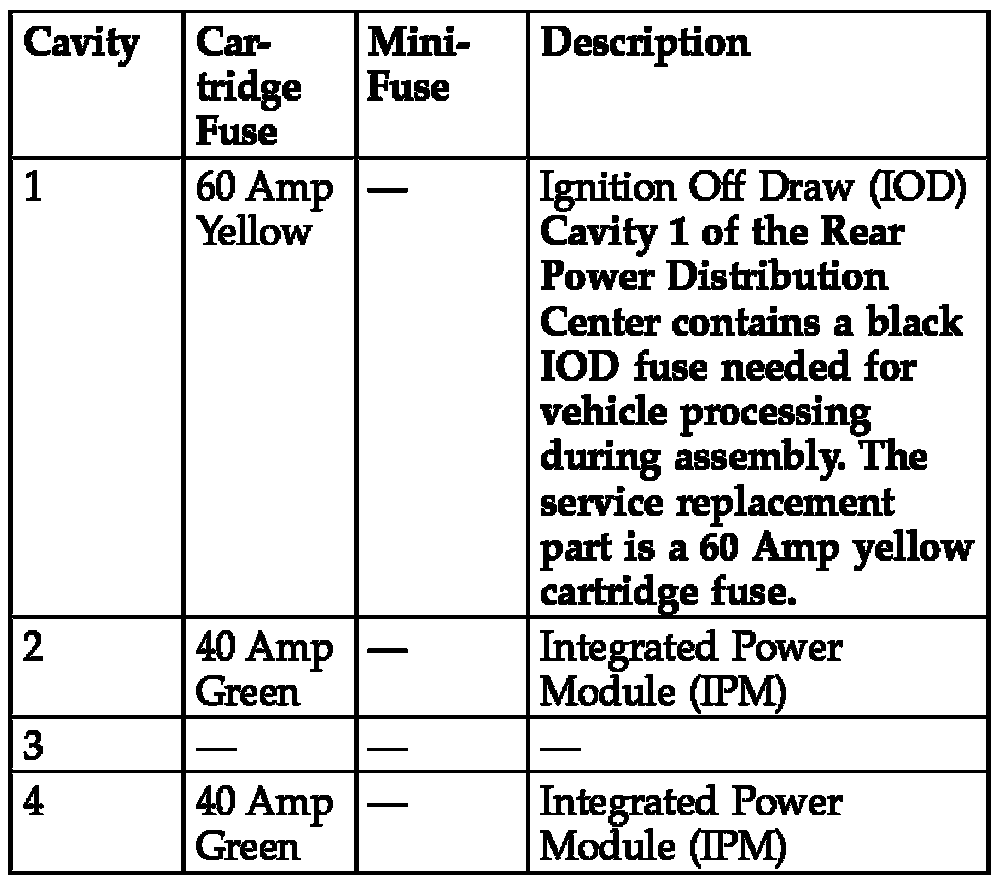

Rear Power Distribution Center
Rear Power Distribution Center

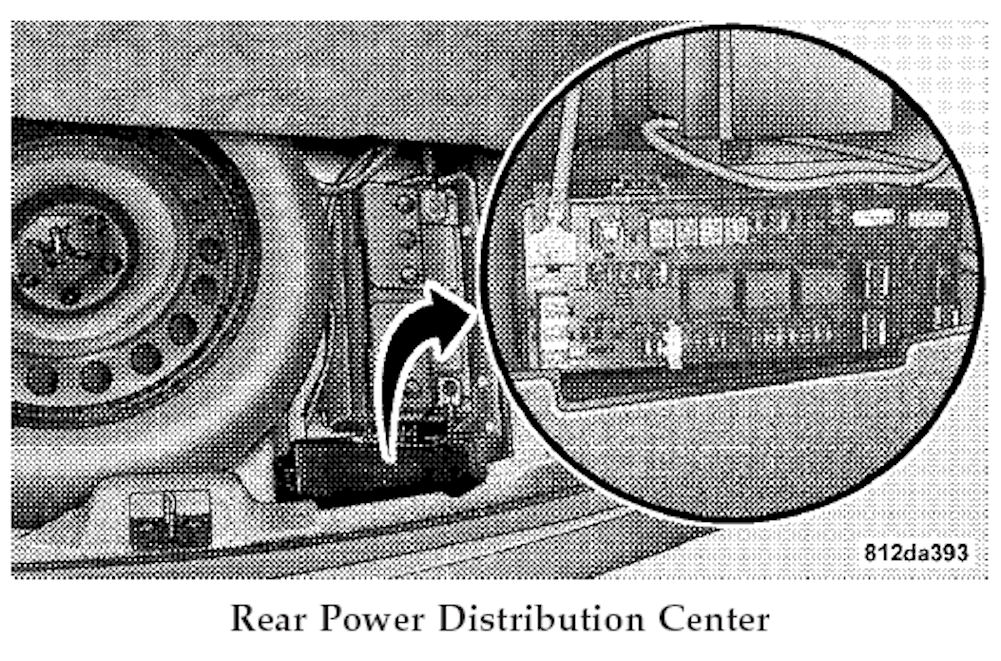

Location

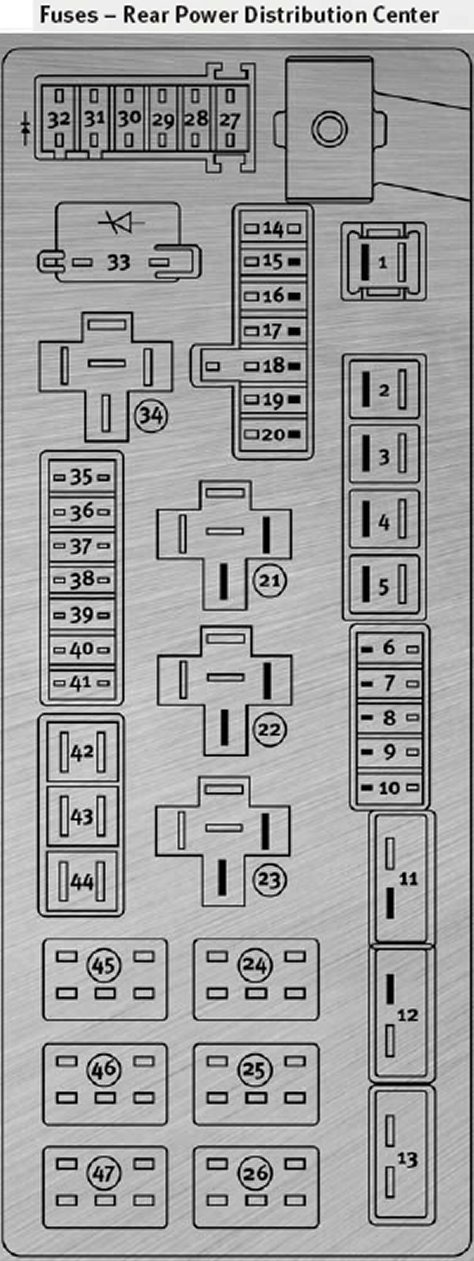

Rear Power Distribution Center
