Passenger Window Up Relay (Instrument Panel) 5 Way
Passenger Window Up Relay (Instrument Panel) 5 Way

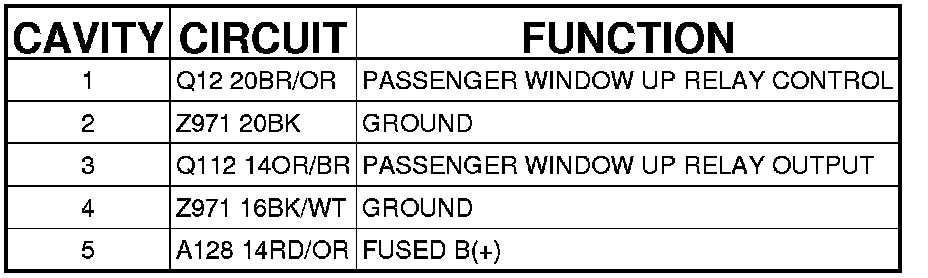

Connector - (INSTRUMENT PANEL) 5 WAY

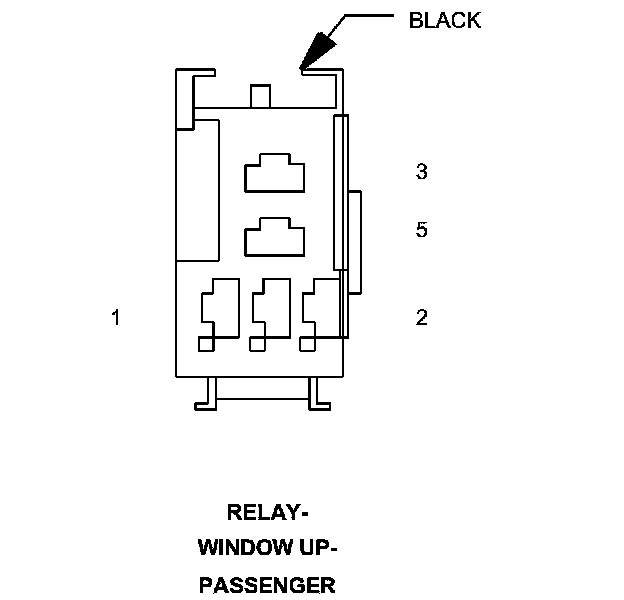

RELAY-WINDOW UP-PASSENGER - (INSTRUMENT PANEL) 5 WAY
