Removal
REMOVAL
1. With vehicle in neutral, position vehicle on hoist.
2. Remove half shaft.
3. Remove output shaft (1) snap ring (2).

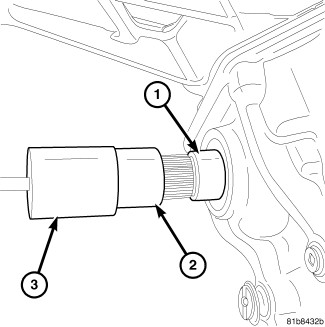

4. Remove output shaft (1) with Jaws 8420B-1 (2) Puller 8420A (3) and Slide Hammer C-3752.
REMOVAL
1. With vehicle in neutral, position vehicle on hoist.
2. Remove half shaft.
3. Remove output shaft (1) snap ring (2).
4. Remove output shaft (1) with Jaws 8420B-1 (2) Puller 8420A (3) and Slide Hammer C-3752.
