Installation

INSTALLATION






NOTE: Output shafts are not interchangeable from side to side. One shaft is longer than the other.

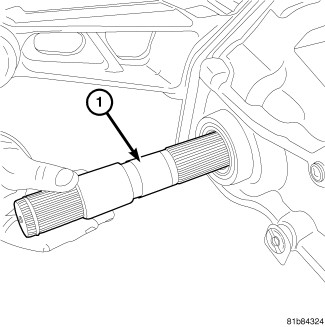

1. Install output shaft (1) and verify snap ring is seated.

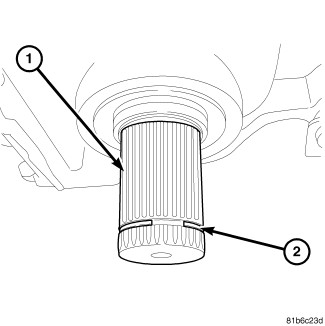

2. Install output shaft (1) and half shaft snap ring (2).
3. Install half shaft.
4. Fill differential with lubricant to specifications.
