Installation

INSTALLATION

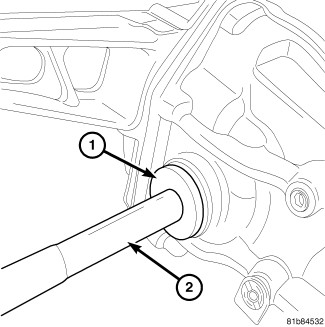

1. Install output shaft bearing with Installer 10032 (1) and Handle C-4171 (2).
2. Install output shaft seal with Installer C-4026A and Handle C-4171.
3. Install output shaft and half shaft.
4. Fill differential with lubricant to specifications.
