Transmission Pilot Bushing - Removal

REMOVAL





1. Remove transmission TR6060 Manual Transmission - Removal.
2. Remove clutch and flywheel Clutch Disc - Removal.

NOTE: Clean fly wheel flange of any thread locker debris.

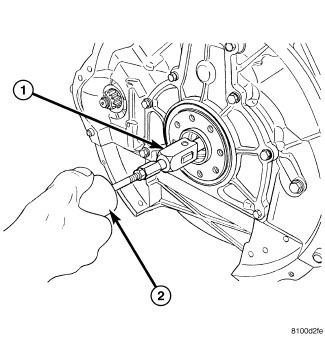

3. Using seal remover 8990 (1) and slide hammer C-3752 (2) remove pilot bearing from crankshaft.
