Installation

INSTALLATION

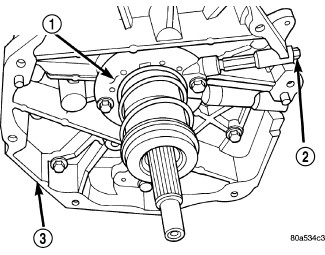

1. Install release bearing slave cylinder (1) onto input shaft.
2. Install release bearing slave cylinder (1) bolts into transmission and tighten to 20 Nm (15 ft. lbs.).
3. Install transmission assembly.
4. Connect hydraulic line to slave cylinder.
5. Bleed the system.
