Intermediate Shaft Extension - Installation

INSTALLATION

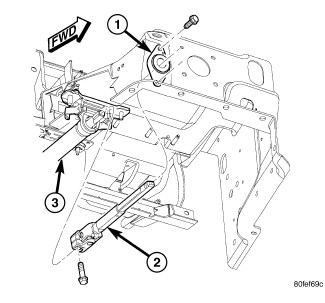

1. Slide intermediate shaft extension (2) into bearing (1) mounted to dash panel.
2. Align opposite end of extension with steering column (3) shaft. Slide extension coupling onto steering column shaft until hole is lined up for pinch bolt installation.
3. Install coupling pinch bolt at steering column shaft and tighten to 49 Nm (36 ft. lbs.).
4. Tighten previously loosened extension bearing mounting bolt to 17 Nm (150 in. lbs.).

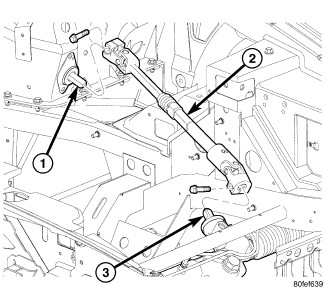

5. Align intermediate shaft (2) with intermediate shaft extension (1) and slide intermediate shaft coupling onto extension until hole is lined up for pinch bolt installation.
6. Install coupling pinch bolt at extension and tighten to 49 Nm (36 ft. lbs.).

7. Remove steering wheel holder.
8. Connect battery (-) negative cable to battery negative post.
