Power Steering Pump Pulley - Installation






INSTALLATION

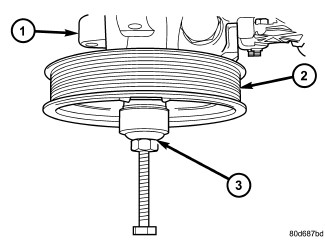

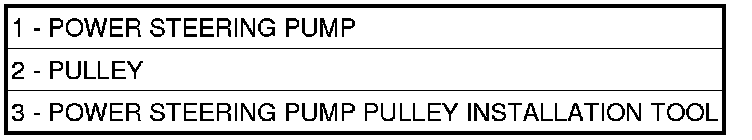

1. Install pulley (2) on pump (1) with an appropriate power steering pulley installation tool (3). Ensure tool and pulley remain aligned with pump shaft during installation. Make sure pulley is flush with end of shaft when finished.

2. Install power steering pump on vehicle. Power Steering Pump - Installation
